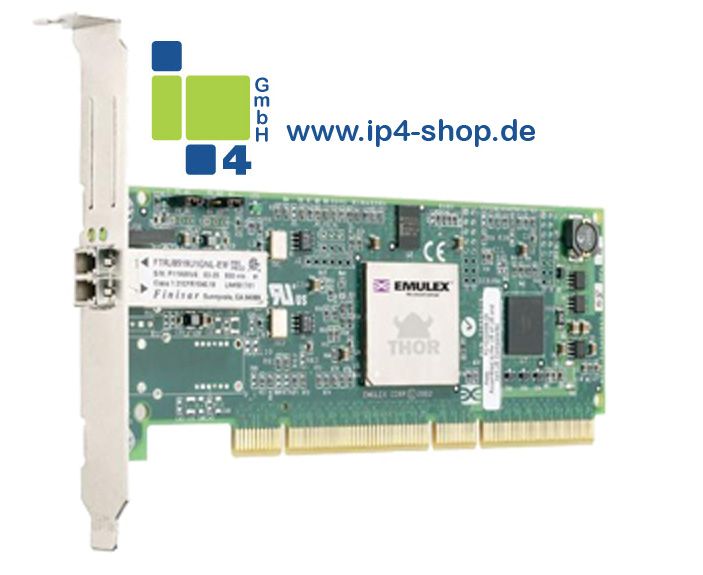

Emulex 2 Gb/s LP1050 1 Port FC HBA Card refurbished
Beschreibung
Emulex 2 Gb/s LP1050 1 Port FC HBA PCI-X 133 MHz Card refurbished
Modell: LP1050
HP-Modell: A7388A Spare Part 366027-001
Zustand: refurbished, 12 Monate ip4 Gewährleistung
Modell: LP1050
STANDARDS:
ANSI Fibre Channel: FC-FS, FC-PH, FC-PI, FCP, FCP-2, FC-AL, FC-PLDA, FC-MI, FC-FLA, IETF IP over FC PCI-X 1.0a & PCI 2.3 Fibre Channel Class 2 & 3 PHP hot plug ? hot swap ARCHITECTURE:
Emulex LightPulse® technology 2Gb/s or 1Gb/s FC Link Quad Data Rate (QDR) SRAM Unified Data Buffer & Code Space memory DRIVER SUPPORT:
Windows Server 2003, Windows 2000, Windows NT, Linux, NetWare HARDWARE ENVIRONMENTS:
x86 & Intel® Itanium® Processor family, 3.3V signaling, 5V tolerant, 32/64-bit 33/66MHz PCI, 66/100/133MHz PCI-X OPTICAL:
data rates: 1.0625/2.125 Gb/s (auto?detected)
optics: short wave lasers with LC type connector
cable: 50/125µm, up to 300 meters at 2Gb/s, 62.5/125µm, up to 150 meters at 2Gb/s PHYSICAL DIMENSIONS:
short low profile MD2 form factor card 167.64mm x 64.42mm (6.60? x 2.54?) standard bracket (low profile available) POWER AND ENVIRONMENTAL REQUIREMENTS:
volts: +3.3 and +5 VDC, power @ 66MHz (typ/max): LP1050: 8.0/11.4 watts, LP1050DC: 8.1/11.6 watts, power @ 100/133MHz (typ/max):
LP1050: 8.9/12.7 watts
LP1050DC: 9.2/13.1 watts
operating temperature: 0° to 45°C (32° to 113°F)
airflow required: 100 lf/m
storage temperature: -40° to 70°C (-40° to 158°F)
5% to 95% non?condensing
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
