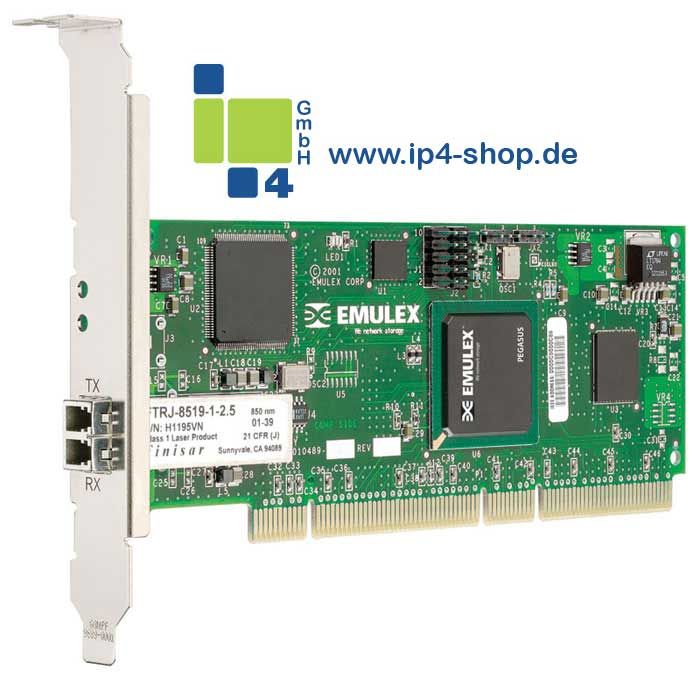

Emulex 2 Gb/s LP9802 (HP FCA2404) FC HBA PCI-X 133 Card refurbished
Beschreibung
Emulex 2 Gb/s LP9802 FC HBA PCI-X 133 MHz Card
refurbished
Modell: LP9802
HP-Modell: HP
StorageWorks FCA2404, 313045-002, 336070-001
Zustand: refurbished, 12 Monate ip4
Gewährleistung
Emulex 2 Gb/s LP9802 FC HBA PCI-X 133 MHz Card
refurbished
Modell: LP9802
HP-Modell:
313045-002, 336070-001
STANDARDS:
ANSI Fibre Channel FC-FS, FC-PH, FC-PI, FC-AL, FC-PLDA, FC-MI, FC-FLA,
PCI-X 1.0a , PCI local bus revision 2.2 (see power requirements), Fibre Channel
Class 2, 3, PHP hot plug - hot swap
ARCHITECTURE:
Emulex
Pegasus ASIC technology, up to 133MHz PCI-X DMA, 2Gb/s or 1Gb/s FC Link , 2MB
FLASH memory, 2MB QDR SRAMSOFTWARE
ENVIRONMENTS:
Windows Server 2003, Windows
2000, Windows NT, HP-UX, Linux, NetWare,SolarisHARDWARE
ENVIRONMENTS:
x86, SPARC and PowerPC PCI hardware platforms, 3.3V signaling,
5V tolerant, 32/64b 33/66MHz PCI, 66/100/133MHz PCI-X PHYSICAL DIMENSIONS:
Short low profile
MD2 form factor, Low profile or standard bracket167.64mm x 64.42mm (6.60" x
2.54")
OPTICAL:
Data rates:
1.0625/2.125Gb/s,Optics: short/long wave lasers,Cable: 9/125µm single-mode
fiber50/125µm multi-mode fiber62.5/125µm multi-mode fiber,Connector:
LC
Distance: (1Gb/s)10K meters (32,800') 9/125 µm fiber500 meters (1,640')
50/125 µm fiber300 meters (984') 62.5/125 µm fiber(2Gb/s) 10K meters (32,800')
9/125 µm fiber300 meters (984') 50/125 µm fiber150 meters (492') 62.5/125 µm
fiber
POWER
REQUIREMENTS:
Volts: +3.3 VDC (± 5%),
Power: 7.7 watts @ 66MHz, 8.5 watts @ 133MHz (typ)ENVIRONMENTAL
CONDITIONS:
Operating temperature: 0° to 45°C (32° to 113°F), Airflow
required: 100 lf/m, Storage temperature: -40° to 70°C (-40° to 158°F), Relative
humidity: 5% to 95% non-condensing
AGENCY APPROVALS:
Class 1 Laser Product per DHHS 21CFR (J) & EN60825, UL recognized to
UL 1950, CUR recognized to CSA22.2, No. 950, TUV certified to EN60950, FCC
rules, Part 15, Class A, ICES?003, Class A, EMC Directive 89/336/EEC (CE Mark) -
EN55022, Class A - EN55024, Australian EMC Framework (C?Tick Mark) - AS/NZS
3548, Class A, VCCI, Class A
DRIVER SUPPORT:
A rich suite of software complements the
LP9802. Some examples of the features included are, LUN Masking, LUN Mapping,
Persistent Binding, I/O Coalescing, full fabric boot in both x86 and Sparc
environments as well as support for multi or simultaneous protocol (SCSI &
IP) operation. In addition, most drivers include a full-featured implementation
of the FC-MI HBA Management Interface. These features enable advanced storage
area network (SAN) implementations in Windows Server 2003, Windows 2000, Windows
NT, Linux, HP-UX, Solaris and NetWare environments. All drivers are also fully
compatible with the Emulex LP10000, LP9002L, LP8000, LP7000E, LP9402DC, and
LP9002C host bus adapters. Windows, Linux and NetWare drivers are also
compatible with the LP1050, LP850, LP952L and
LP982.
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
