HP Compaq Smart Array 5300 / 5304 Raidcontroller 256 MB Cache 4CH REF

HP 5302 / 256 MB Smart Array 5300 U3-SCSI-Controller refurbished

Description:
5302 Smart Array PCI Dual Channel Array Controller with 64MB of Cache
Spare Part# 171383-001

Overview:

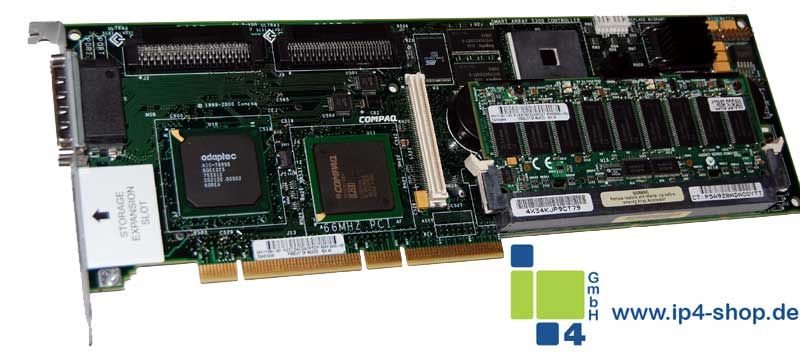

Smart Array 5300 series Ultra3 SCSI LVD/SE controller board - Has two Internal high density 68-pin Ultra3 SCSI connectors, two external very high density 68-pin Ultra3 SCSI connectors

The Smart Array 5300 series of high performance Ultra3 array controllers provides improved flexibility and data protection thanks to an innovative modular design and new Advanced Data Guarding - RAID ADG technology. In addition, it again raises the bar to higher performance levels, with several enhancements that include a new memory architecture and new RAID engine.

Specifications:
Category:                                   Proliant
Sub-Category:                           Controller
Generation:                               Ultra3
RAID:                                         Level RAID 0, RAID 1, RAID 5, RAID 10
Part Number:                             283551-B21
Enclosure:                                 Internal
SCSI Interface:                          Wide Ultra3 SCSI
Recommended Machine Type: Server
Platform:                                   PC, Unix, Sun
Bus Type:                                  PCI-64 / 66 MHz
Data Transfer Rate:                   160 Mbps
Buffer Size:                               256 MB
Internal Connectors:  2 x HD-68 (HD D-Sub, 68-polig, internal) - Ultra160 SCSI LVD
External Connectors: 4 x VHDCI (Mini-Centronics, 68-polig, extern) - Ultra160 SCSI LVD
Maximum Supported Devices: 56
