HP 4 Gbit/s FC2143 Single Port PCI-X 2.0 FC HBA refurbished
Beschreibung

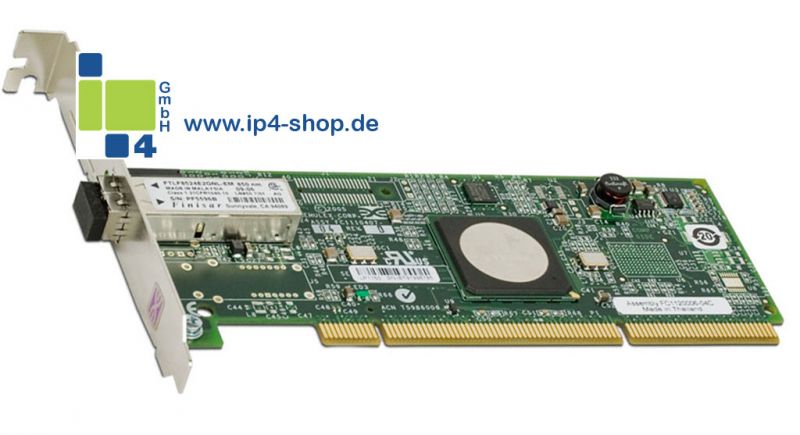

HP FC2143 4-Gbit/s Single Port FC HBA PCI-X 2.0
Card refurbished
HP Modell: HP
StorageWorks FC2143 / AD167A
HP Sparepart: 410984-001
Emulex Modell:
LP1150
Zustand:
refurbished, 12 Monate ip4 Gewährleistung
Produktbeschreibung vom Hersteller HP FC2143 /
AD167A
Product Description
The 4Gb PCI-X Fibre Channel Host Bus Adapter Family consists of single and dual channel Host Bus Adapters (HBAs) with an optical
LC type connector. These HBAs are provided by Qlogic and Emulex and are qualified for ProLiant and Integrity platforms configured
with the Enterprise Virtual Array 3000, 4000, 5000, 6000 and 8000, MSA1000, MSA1500, and XP array offerings.
For supported Fibre Channel SAN Switches, please consult the SAN Design Reference Guide at the following WEB address:
Key Features
4Gb/s Fibre Channel link speed support
PCI-X 2.0 mode 2, 266 MHz bus compatibility and extended high-availability support with ECC.
Compatible with PCI 33/66 (3.3V signaling) and PCI-X 66/100/133 MHz slots
Automatic speed negotiation with existing 1Gb/s and 2Gb/s Fibre Channel SANs
Superior performance capable of sustaining up to 150,000 I/Os per second per channel
4-Gbps FC increases aggregate throughput rate to 1.6GBps in full-duplex mode
Full fabric support with automatic topology and speed adaptation
Full support for both FC service Class 2 and 3
Support FC-Tape devices
RoHS compliance
HBAnyware from Emulex and Qlogic SANsurfer FC HBA Manager for centralized management and remote control of
distributed HBAs
Benefits At a Glance
Higher performance with lower price
Supports the Windows and Linux operating environments
Provides the flexibility and broad interoperability need for complex highly scalable SANs
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
