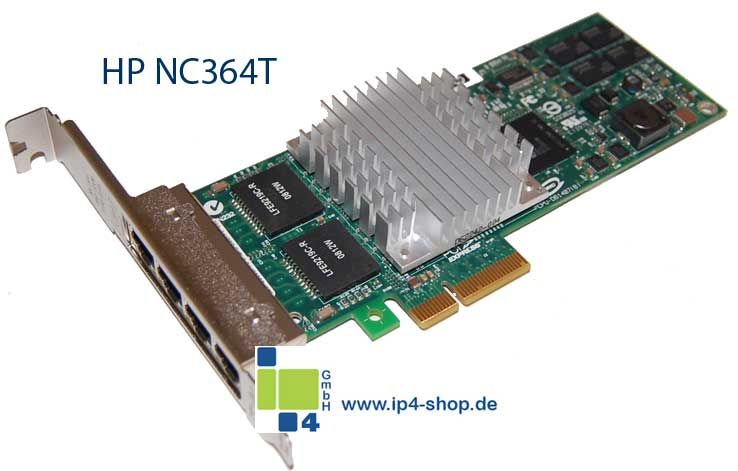

HP NC364T PCI Express Quad Port Gigabit Server Adapter x4 PCI Express REF
Beschreibung
HP NC364T PCI Express Quad Port Gigabit Server Adapter x4 PCI Express
REF
Modell: 412648-B21
Zustand: refurbished, 12 Monate ip4
Gewährleistung
Compatible with Server Models:
DL1000, DL120 G5/G6, DL140 G3, DL145 G3, DL160 G5/G5p/G6, DL160se G6, DL165
G5/G5p/G6/G7, DL170h G6, DL180 G1/G5/G6, DL185 G5, DL320 G5/G5p/G6, DL320s,
DL360 G5/G6/G7, DL365 G1/G5, DL370 G6, DL380 G5/G6/G7, DL385 G2/G5/G5p/G6/G7,
DL580 G4/G5, DL585 G2/G5/G6, DL785 G5/G6, DL980 G7, ML110 G5, ML150 G3/G5/G6,
ML310 G4/G5/G5p, ML330 G6, ML350 G5/G6, ML370 G5/G6, ML570 G4, SL165z
G7
The HP NC364T PCI Express Quad-Port Gigabit Server Adapter features
four 10/100/1000T Gigabit Ethernet ports on a single card, saving valuable
server I/O slots for other purposes. The NC364T is a low-profile card. The x4
PCI Express interface is compatible with x4, x8, and x16 PCI
slots.
Feature | Description | |||
---|---|---|---|---|
Models |
| |||
Kit contents | The option kit contains the following
items:
| |||
Server support |
| |||
Performance | ||||
Quad-port Gigabit ethernet throughput | With a theoretical throughput of 10 Gbps each direction, the x4 PCI Express bus is more than capable of supporting the NC364T's four gigabit ports. Up to 1000 Mbps Ethernet transfer rate per port (4000 Mbps combined) delivers outstanding network performance designed to improve response time and remove bottlenecks across the entire network. Four ports on a single adapter are ideal for high density, I/O slot constrained servers, virtualization and security, applications, server consolidation, and increased network segmentation. The total aggregate throughput of 4Gbps also meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet. | |||
Jumbo frames | Jumbo frames (also known as extended frames) permit a 9K byte transmission unit (MTU), which is six times the size of standard 1500 byte Ethernet frame. The NC364T supports jumbo frames as a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups. | |||
802.1Q VLANs with 802.1p QoS tagging | IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC364T to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance. VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to within the same VLAN domain also improves performance. IEEE quality of service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-aware network for improved traffic flow. | |||
TCP/IP stateless offloading | For overall improved system response, the NC325m
supports standard TCP/IP offloading techniques including:
| |||
Interrupt coalescence | Interrupt coalescing (interrupt moderation) groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties. | |||
Dual address cycles | Dual address cycles (DAC) provide the ability to address memory above 4 GB and improve system performance by preventing the server operating system from performing a buffer copy from below 4 GB to above 4 GB. | |||
10/100/1000T twisted pair networks | In addition to Gigabit Ethernet, the NC364T adapter supports both 10Mbps and 100Mbps providing compatibility with Ethernet and Fast Ethernet twisted pair networks. | |||
Full and half height brackets | The NC364T is a low-profile card supporting both full height and half height PCI Express slots. A full height bracket is pre-installed on the card with the half height bracket in the box. The quick install card includes instructions on how to change brackets if needed. | |||
x4/x8/x16 PCI express compatibility | The x4 PCI Express interface on the NC364T is compatible with x4, x8, and x16 PCI slots. If installed in a x8 or x16 slot, the adapter will operate at the x4 speed. | |||
Auto-negotiation | The NC364T automatically senses the speed of the device to which it is attached. It also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or router connected to the adapter. | |||
Server integration | The NC364T is a completely integrated, tested,
and qualified solution that is optimized for HP servers. HP validates a
wide variety of major operating systems drivers with the full suite of
web-based enterprise management utilities and ProLiant Essentials
(including SmartStart and HP Systems Insight Manager) that simplify
network management. Integrated Management Log (IML) support is provided by
the NC364T for critical event logging on HP servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters. | |||
LED indicators | Per port bracket LED indicators show link integrity, network activity, and network speed for easy troubleshooting. |
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
