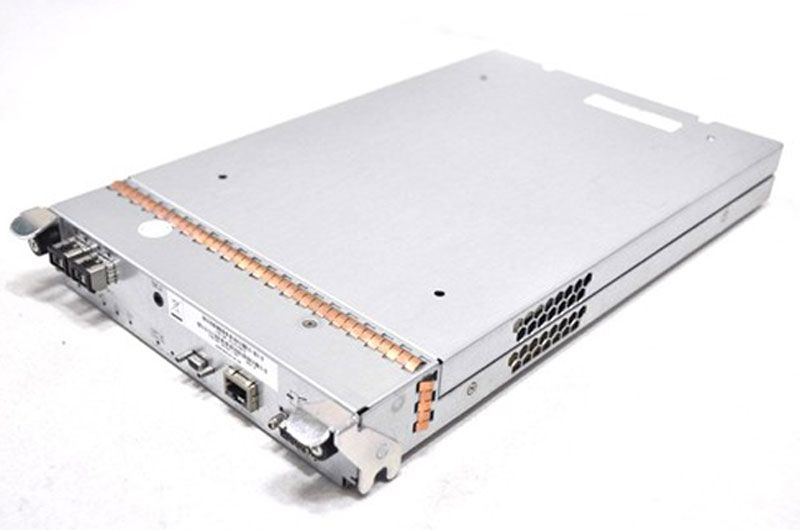

HP StorageWorks MSA2212FC MSA2012FC MSA2000 Enhanced Redundant Array RAID Controller Module REF

ab 995,00 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 201504873
  • Artikelgewicht: 20,00 kg
  • Versandgewicht: 25,00 kg
Jetzt Kaufen
bitte wählen

Beschreibung

HP StorageWorks MSA2212FC MSA2012FC MSA2000 Enhanced Redundant Array RAID Controller Module REF

Zustand: refurbished, 12 Monate ip4 Gewährleistung

Part/Assembly Number(s): na
Option/Retail Part Number: AJ744A
Spare Number(s): 481341-001

Produktbeschreibung vom Hersteller ip4-shop HP QuickSpecHP-Modular-Smart-Array-MSA2312FC G2

Overview

HP 2000fc G2 Modular Smart Array

The HP 2000fc G2 Modular Smart Array (MSA2000fc) represents the newest Fibre Channel model of the MSA2000 family (which includes the MSA2000i G2 iSCSI and the MSA2000sa G2 SAS connected models), a new generation of HP storage arrays specifically designed for entry-level customers and features the very latest in functionality and technology at highly affordable price points.

The MSA2000fc G2 is a 4 Gb Fibre Channel connected 2U storage area network (SAN) or direct connect solution (OS dependent) designed for small to medium size departments or remote locations. The controller-less chassis is offered in two models - one comes standard with twelve Large Form Factor (LFF) 3.5-inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF) 2.5-inch drives (common with ProLiant). Both are able to simultaneously support enterprise-class SAS drives and archival-class SATA drives. The chassis can have one or two MSA2300fc G2 controllers.

The MSA2000fc G2 is all about the ability to choose the proper configuration to fit individual needs. The user can opt for the 24- drive bay SFF chassis for the highest spindle counts in the most dense form factor, or go for the 12 drive bay LFF model to max out total capacity. Choose a single controller unit for low initial cost with the ability to upgrade later; or decide on a model with dual controllers for the most demanding entry-level situations. Capacity can easily be added when needed by attaching additional drive enclosures. Maximum capacity ranges with LFF drives up to 36 TB SAS or 120 TB SAS MDL or SATA with the addition of the maximum number of drive enclosures. Configurations utilizing the SFF drive chassis and the maximum number of drive enclosures can grow to 29.7 TB of SAS or 49.5TB SAS MDL or SATA MDL with a total of ninety-nine drives. The MSA2000fc G2 has been fully tested up to 64 hosts.NOTE: There are no additional hidden charges, licenses or fees as you add enclosures or hosts and users.

The new Fibre Channel G2 model has grown in other aspects too. Optional snapshot capability has been increased to 255 snaps on the G2 models, and LUN support has grown up to 512 total volumes in a Dual Controller system. The MSA2000fc G2 also adds support for HP-UX, OpenVMS, Windows, and Linux on powerful Integrity servers.

The MSA2000fc G2 is a member of HP Modular Smart Array offerings, delivering simple and affordable storage technology to meet today's demanding and growing IT needs. These storage solutions offer excellent price/performance and availability features for direct attach configurations (depending on OS), clusters, workgroups and entry-level SAN environments. Each solution is designed to be easy to deploy, to be secure, along with low management costs, while driving rapid return on investment.


Features and Benefits

HP MSA2000fc G2 Models At a Glance:
  • High performance Modular Smart Array controller(s), each with two 4Gb Fibre Channel ports
  • Single or dual controller capability
  • 1 GB transportable cache per controller - battery-free cache backup with super capacitors and compact flash
  • 512 LUNs with LUN size up to 16TB
  • 2U rack mount chassis combining both the controller and disk shelf
  • Twelve 3.5-inch or twenty-four 2.5-inch dual-ported SAS, SAS MDL or SATA MDL drive bays (supports mixing of drive types in a single shelf)
  • Supports expansion to 4 additional LFF enclosures for a total of 60 LFF disks
  • Supports expansion to 3 additional SFF enclosures (MSA70) for a maximum total of 99 SFF disks
  • Redundant power supplies and fans are standard
  • RAID levels 0, 1, 3, 5, 6, 10, 50
  • Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)
  • Heterogeneous support for 32-bit and 64-bit Windows, Red Hat and SuSE Linux, and HP-UX
  • Windows Server 2008 x64 Hyper-V, VMware
  • Qualified and certified for Windows, Linux, and HP-UX and OpenVMS clustering
  • Optional controller-based snapshot and clone functionality

Family Information

MSA2000fc G2
MSA2000i
MSA2000sa
Comparison w/ EVA4400
Capacity
Minimum / with maximum additional drive enclosures

LFF: 7.2 TB SAS
or 24 TB SAS MDL or SATA
w/ 4 drive enclosures:
36 TB SAS
or 120 TB SAS MDL or SATA MDL
SFF: 7.2 TB SAS, 12TB SAS MDL
or 12 TB SATA
w/ 3 MSA70 JBODs:
29.7 TB SAS, 49.5TB SAS MDL
or SATA MDL

LFF: 7.2 TB SAS
or 24 TB SAS MDL or SATA
w/ 4 drive enclosures:
36 TB SAS
or 120 TB SAS MDL or SATA MDL
SFF: 7.2 TB SAS, 12TB SAS MDL
or 12 TB SATA
w/ 3 MSA70 JBODs:
29.7 TB SAS, 49.5TB SAS MDL
or SATA MDL

LFF: 7.2 TB SAS
or 24 TB SAS MDL or SATA
w/ 4 drive enclosures
36 TB SAS
or 120 TB SAS MDL or SATA MDL
SFF: 7.2 TB SAS, 12TB SAS MDL
or 12 TB SATA
w/ 3 MSA70 JBODs:
29.7 TB SAS, 49.5TB SAS MDL
or SATA MDL

LFF: 5.4 TB FC
or 12 TB FATA
w/ 8 drive enclosures
43 TB FC
or 96 TB FATA
(LFF only)

Controller Cache
1 GB per controller
1 GB per controller
1 GB per controller
2 GB per controller
Total LUNs 512 511 512 1024
Host connect
MSA2000 have 1 or 2 controllers, EVA has 2 controllers standard

Two 4 Gb
Fibre Channel ports
per controller

Two 1 GbE
iSCSI ports
per controller

Four 3 Gb
SAS ports
per controller

Two 4 Gb
Fibre Channel ports
per controller
(Ten w/switch)

Maximum Drives
w/ expansion
60 LFF/99 SFF
60 LFF/99 SFF
60 LFF/99 SFF
96
Maximum host supported
64
32
64**
512
Snapshot, clone
Snapshot (max 255) clone
Snapshot (max 255)
clone
Snapshot (max 255)
clone

Snapshot, clone,
remote data replication

Use for Storage
Primary Storage
with SAS.
Secondary with SATA
Primary Storage
with SAS.
Secondary with SATA
Primary Storage
with SAS.
Secondary with SATA
Primary Storage
with FC
Secondary with FATA
NOTE: maximum available storage capacity depends on the RAID level being implemented, and is based on maximum number of LUNs and LUN size.
** Supports up to 8 hosts with SAS direct connect and 64 hosts (BladeSystem servers) using 3Gb SAS BL switch

Eigenschaften

  • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
