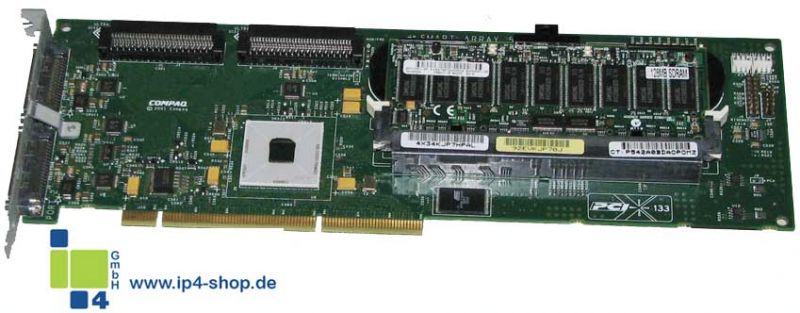

HP Compaq Smart Array 5312 Raidcontroller 256 MB Cache 2CH REF

Kategorie

SA Smart Array Controller

Hersteller

HP Hewlett-Packard

Beschreibung

HP Compaq Smart Array 5312 Raidcontroller 256 MB Cache 2CH refurbished
Modell: 238633-B21

Zustand: refurbished, 12 Monate ip4 Gewährleistung

Part/Assembly Number(s): 011420-001
Option/Retail Part Number: 238633-B21
Spare Number(s): 244891-001

Compatible with Server Models: DL380 G2, DL580 G1, DL760 G1, ML370 G2, ML530 G1, ML570 G1, ML750

Produktbeschreibung vom Hersteller HP-Smart-Array-5312

Overview:

The Smart Array 5312 (SA-5312) high-performance, dual channel Ultra3, PCI-X array controller provides reliable data protection for Compaq ProLiant servers and offers flexibility thanks to an innovative modular design. The SA-5312 controller raises the standard to higher performance levels with several enhancements including enhanced memory architecture and RAID engine. Designed and tested with industry-standard ProLiant Servers for greater reliability, this controller is ideal for the distributed workgroup server or centralized departmental server, and like other Smart Array controllers, the SA-5312 offers complete data compatibility with previous generations' Smart Array controllers for easy data migration and upgradability.

Features
Product Description	Compaq Smart Array 5312 - storage controller (RAID) - Ultra160 SCSI - PCI-X
Device Type	Storage controller (RAID) - plug-in card
Interface Type	PCI-X / 133 MHz
Dimensions (WxDxH)	4 in x 18.4 in x 8.3 in
Weight	3.3 lbs
Controller Interface Type	Ultra160 SCSI
Data Transfer Rate	160 MBps
Buffer Size	256 MB
Supported Devices	Disk array (RAID)
Channel Qty	2
Max Storage Devices Qty	28
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
System Requirements	Novell NetWare 4.2, Linux, Microsoft Windows 2000 / NT4.0, Novell NetWare 5.x

Specification
General
Device Type	Storage controller (RAID) - plug-in card
Interface Type	PCI-X / 133 MHz
Width	4 in
Depth	18.4 in
Height	8.3 in
Weight	3.3 lbs
Storage Controller
Controller Interface Type	Ultra160 SCSI
Data Transfer Rate	160 MBps
Buffer Size	256 MB
Supported Devices	Disk array (RAID)
Channel Qty	2
Max Storage Devices Qty	28
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Expansion / Connectivity
Expansion Slot(s)	1 x memory
Interfaces	2 x storage - Ultra160 SCSI LVD ( external ) ¦ 2 x storage - Ultra160 SCSI LVD - 68 pin HD D-Sub (HD-68) ( internal )
Compatible Slots	1 x PCI-X / 133 MHz

Eigenschaften

Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
