HP Compaq Smart Array P600 SAS Raid Controller 256MB REF
Beschreibung

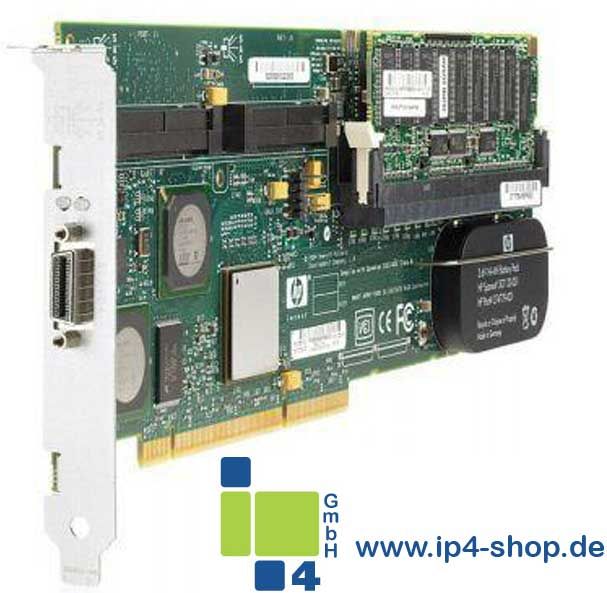

HP Compaq Smart Array P600 SAS Raid Controller 256MB
REF
HP-Modell: 337972-B21
Zustand: refurbished, 12 Monate ip4
Gewährleistung
Part/Assembly Number(s): 012335-001
Option/Retail Part Number:
337972-B21
Spare Number(s): 370855-001
Compatible with Server Models: DL360 G4, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385 G1, DL385 G2, DL580 G3, DL580 G4, DL580 G5, DL585 G1, DL585 G2, ML310 G2, ML310 G3, ML350 G5, ML370 G5, ML570 G3, ML570 G4
Produktbeschreibung vom Hersteller HP-SAS-Smart-Array-Controller-P600
Overview: | ||||||||||||||||||||||||||
The HP Smart Array P600 serial attached SCSI (SAS) controller provides new levels of performance and reliability for HP servers, through its support of the latest SCSI technology and advanced RAID capabilities. The first of a new generation of SAS Smart Array controllers, the SA-P600 once again raises the standards of performance offering twice the bandwidth of a 4-channel U320 array controller.
|
Specification: | |
General | |
Device Type | Storage controller (RAID) - plug-in card |
Interface Type | PCI-X / 133 MHz |
Width | 4 in |
Depth | 18.4 in |
Height | 8.3 in |
Storage Controller | |
Controller Interface Type | Serial ATA-150 / SAS |
Data Transfer Rate | 300 MBps |
Buffer Size | 256 MB (installed) / 512 MB (max) |
Supported Devices | Hard drive, disk array (RAID) |
Channel Qty | 8 |
Max Storage Devices Qty | 38 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, ADG |
Processor | PowerPC 440 |
Expansion / Connectivity | |
Interfaces | 2 x storage - Serial Attached SCSI ( internal ) ¦ 1 x storage - Serial Attached SCSI ( external ) |
Compatible Slots | 1 x PCI-X / 133 MHz |
Software / System Requirements | |
OS Required | Microsoft Windows 2000, Novell NetWare 5.1, Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standard Edition, Microsoft Windows Small Business Server 2003, Red Hat Enterprise Linux 3, SunSoft Solaris 10, SuSE Linux Enterprise Server 9 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 9, Microsoft Windows Server 2003 Standard x64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x64 Edition, Novell NetWare 6.5 SP3, Novell Open Enterprise Server |
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
