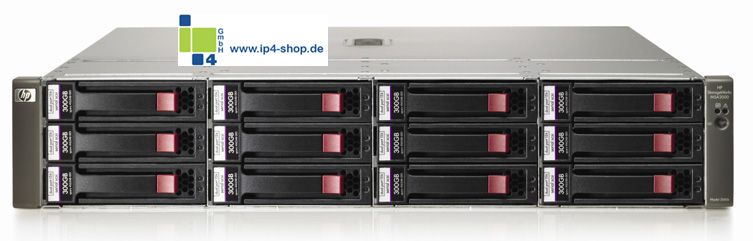

HP MSA2012i 2x 2 Port iSCSI Dual-Controller 24 TB SAN-Storage AJ747A REF
Beschreibung
HP MSA2012i 2x 2 Port iSCSI Dual-Controller 24 TB SAN-Storage AJ747A REF
Zustand: refurbished, 12 Monate ip4 Gewährleistung
Part/Assembly Number(s): na 12x Brand NEW 2TB SATA HDDs (in original HP Trays)
Option/Retail Part Number: AJ74/A
Spare Number(s): na
Festplatten / HDDs:
Produktbeschreibung vom Hersteller HP-Modular-Smart-Array-MSA2012i
Overview
| ||||
| ||||
|
What's New |
|
Models | ||
HP MSA2000i Modular Smart Array | HP 2012i Single Controller Modular Smart Array |
AJ746A |
HP 2012i Dual Controller Modular Smart Array |
AJ747A | |
HP 2000i Modular Smart Array Controller |
AJ748A | |
HP MSA2000 Single I/O 3.5 in 12 Drive Enclosure (w/ two .6m SAS cables) |
AJ749A | |
HP MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure (w/ two .6m SAS cables) |
AJ750A | |
HP MSA2000 Drive Enclosure I/O Module |
AJ751A |
Family Information
MSA2000fc |
MSA2000i |
MSA2000sa |
EVA4400 | |
Capacity (raw) Minimum / with maximum additional drive enclosures |
5.4TB SAS or 12TB SATA |
5.4TB SAS or 12TB SATA |
5.4TB SAS or 12TB SATA w/ 3 drive enclosures 21.6TB SAS or 48 TB SATA |
5.4TB FC or 12TB FATA |
Controller Cache |
1 GB per controller |
1 GB per controller |
1 GB per controller |
2 GB per controller |
Host connect MSA2000 has 1 or 2 controllers, EVA has 2 controllers standard |
Two 4Gb |
Two 1GbE |
Two 3Gb SAS ports per controller |
Two 4Gb |
Maximum Drives |
48 |
48 |
48 |
96 |
Maximum host supported |
64 |
16 |
4 |
512 |
Snapshot, remote replication |
Snapshot, clone |
Snapshot, clone |
Snapshot, clone |
Snapshot, clone, |
Use for Storage |
Primary Storage with SAS Secondary with SATA |
Primary Storage with SAS Secondary with SATA |
Primary Storage with SAS Secondary with SATA |
Primary Storage with FC Secondary with FATA |
NOTE: maximum available storage capacity depends on the RAID level being implemented, and is based on maximum number of LUNs and LUN size. |
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
