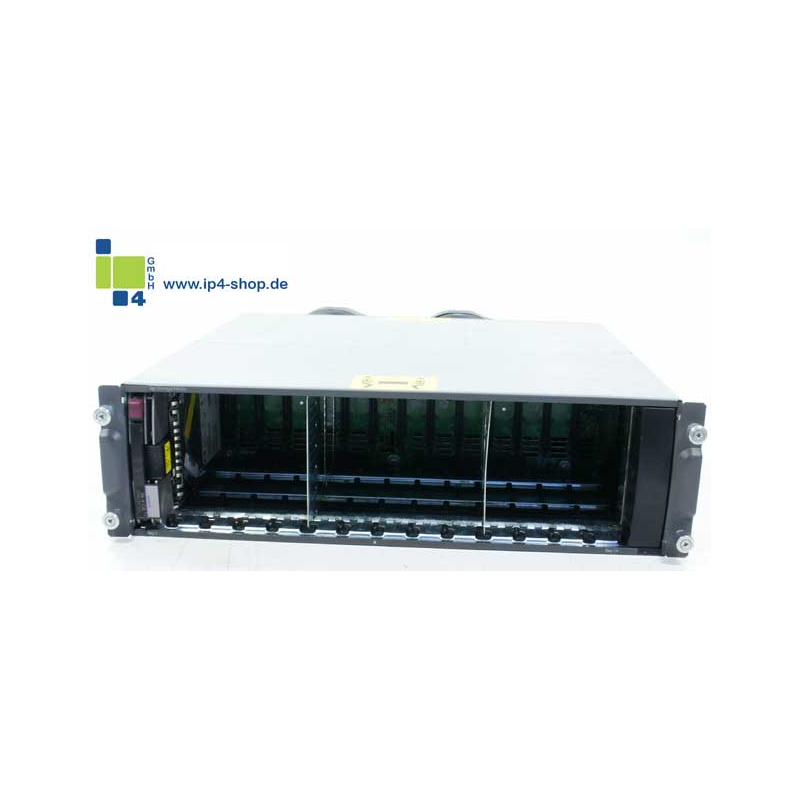

HP Storageworks MSA30 MI Quad Bus Enclosure 359645-B21 REF
Beschreibung
Hinweise:
Achtung, abweichend vom Bild werden standardmäßig keine Blindblenden für Festplattenslots, Rackmountkits und Festplatten mitgeliefert, diese können Sie seperat hier im Shop ordern.
Zustand: used / refurbished
Overview
HP 30 Modular Smart Array Multi-Initiator Enclosure |
(Supporting HP-UX on HP Integrity and HP 9000 Servers, and OpenVMS on HP Integrity only) |
The HP Modular Smart Array 30 Enclosure (hereafter referred to as "MSA30") is an Ultra320 SCSI disk drive storage enclosure. These enclosures deliver industry-leading data performance, availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The drive carrier is designed to support the fastest current Ultra320 hard drives on the same SCSI bus. The HP Modular Smart Array 30 Multi-Initiator (hereafter referred to as "MSA30 MI") builds on the MSA30 design by adding a 4-port I/O Module for the MSA30 to support Multi-Initiator JBOD Clusters. The MSA30 MI will replace the DS2300 and it supports HP-UX on HP Integrity and HP 9000 Servers only. The MSA30 MI does not support ProLiant Servers. The MSA30 MI also supports HP Serviceguard software on HP-UX. HP Serviceguard monitors the health of each node and rapidly responds to failures in a way that minimizes or eliminates application downtime. |
Models: | ||
Model MSA30 MI |
Rack-mountable, U320 SCSI 14-drive enclosure with dual bus, redundant power supplies, 4-port I/O Module for the MSA30 to support Multi-Initiator JBOD Clusters |
359645-B21 |
NOTE 1: In order to configure the MSA30 MI in a rack, have it cabled and have hard drives added the following part number must be ordered 374875-605.
NOTE 2: U320 performance requires a compatible U320 controller. This is noted in the product documentation. A U320 compatible EMU is also required for upgrades to U320 I/O modules |
Technical Specifications
Protocol Support | Wide Ultra320 (LVD) | ||
Wide Ultra3 (LVD) | |||
Wide Ultra2 (LVD) | |||
O/S Support | HP-UX 11.00 HP-UX 11i v1 HP-UX 11i v2 OpenVMS 8.2-1 Defined by specific HP array controller or SCSI adapter used; please refer to the QuickSpecs and/or User Guide of the specific array controller or SCSI adapter | ||
Dimensions (HxWxD) | Rack | 5.2 x 19 x 20.5 in (13.1 x 47.88 x 51.66 cm) | |
Shipping Dimensions (HxWxD) | Rack | 34.25 x 14.5 x 31.25 in (86.31 x 36.54 x 78.75 cm) | |
Weight | Rack | 68 lb (30.9 kg) | |
Shipping Dimensions (HxWxD) |
MSA30 MI (Multi-Indicator) | 34.38 x 34.375 x 12 in (87.33 x 87.313 x 30.48 cm) | |
MSA30 SB (Single Bus) | 34.38 x 34.375 x 12 in (87.33 x 87.313 x 30.48 cm) | ||
MSA30 DB (Dual Bus) | 34.38 x 34.375 x 12 in (87.33 x 87.313 x 30.48 cm) | ||
Ultra320 4-Port Upgrade I/O Module | 14.5 x 11.5 x 3.1 in (36.8 x 29.2 x 8 cm) | ||
Redundant Power Supply, 499 watts | 12.75 x 8 x 3.75 in (32.13 x 20.16 x 9.45 cm) | ||
LED Indicators (on front panel) | EMU Status LED (left) | ||
Enclosure Power LED (middle) | |||
Fault LED (right) | |||
Drive LED Indicators (on drive trays) | Drive LED (top) | ||
On Line LED (middle) | |||
Drive Failure LED (bottom) | |||
Enclosure LED Indicators (back of unit) | I/O Module (top) | ||
EMU (middle) | |||
Power supplies (bottom) | |||
Input Requirements | Nominal Line Voltage | 110 to 240 V AC | |
Range Line Voltage | 90 to 264 V AC | ||
Line Frequency | 47 to 63 Hz | ||
Typical Input Current | 2.3A at 120 V AC | ||
Relative Humidity (non-condensing) | Operating | 10% to 90% | |
Shipping | 5% to 90% | ||
Controllers and Adapters Supported with MSA30 MI |
PCI-X RAID Smart Array 6402 U320, 2CH | ||
PCI-X RAID Smart Array 6404 U320, 4CH | |||
PCI 4-Channel RAID160 SA SCSI Controller | |||
Smart Array 5302 with 128MB cache | |||
Smart Array 5304 with 256MB cache | |||
PCI Dual Channel Ultra160 SCSI Adapter | |||
PCI Ultra160 SCSI Adapter | |||
PCI 2 Port 100Base-T & 2 Port Ultra2 SCSI | |||
Windows and Linux Ultra160 SCSI Adapter | |||
Windows, Linux 2 port Ultra160 SCSI HBA | |||
I/O Module Connector | Very High Density Cable Interconnect (VHDCI) | ||
Power | 377 Watts per supply (load) |
BTU (220 volts) | Single power supply 14 drives | 1164 BTUs/hour |
Single power supply 5 drives | 536 BTUs/hour | |
Single power supply 1 drive | 273 BTUs/hour | |
Dual power supply 14 drives | 1232 BTUs/hour | |
Dual power supply 5 drives | 625 BTUs/hour | |
Dual power supply 1 drive | 352 BTUs/hour | |
Temperature Range | Operating | 50° to 94° F (10° to 35° C°) |
Shipping | -40° to 151° F (-40° to 66° C) |
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
