HP Compaq NC3120 Fastethernet NIC 10/100 Base-T WOL PCI REF

ab 9,95 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 200902244
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

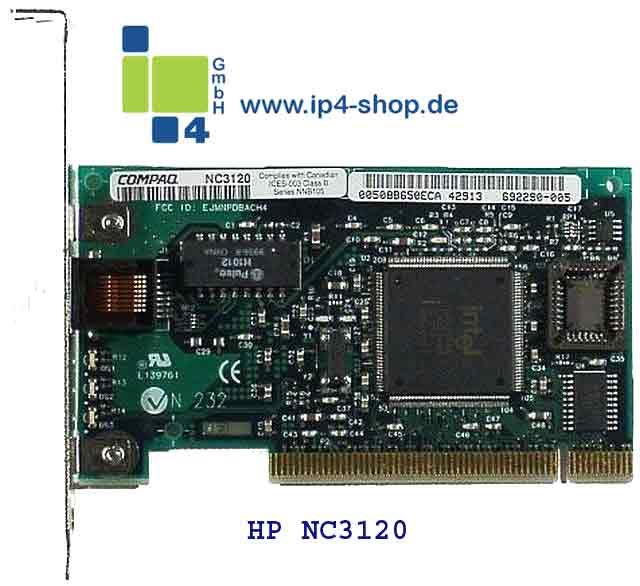

HP Compaq NC3120 Fastethernet NIC 10/100 Base-T PCI WOL REF
Modell:
317600-B21
Zustand: refurbished, 12 Monate ip4 Gewährleistung

  • Manufacturer: HP Compaq
  • Part/Assembly Number(s): 317607-001
  • Option/Retail Part Number: 317600-B21
  • Spare Number(s): 317606-001

    Compatible with Server Models:
    3000, 5500, 6000, 6400, 6500, 7000, 8000, 8500, CL1850, CL380, DL320 G1, DL360 G1, DL360 G2, DL380 G1, DL380 G2, DL580 G1, DL590, DL760 G1, ML330 G1, ML330 G2, ML350 G1, ML350 G2, ML370 G1, ML370 G2, ML530 G1, ML570 G1, ML750

  • The NC3120  10/100 TX PCI Intel UTP Controller supports WOL, standard SNMP MIB support, as well as SmartStart support for Compaq server installation.

    The Compaq NC3121 Fast Ethernet NIC can be remotely powered up from a sleep state during non-work hours. Because no one has to be physically present for power-up, this Wake on LAN (WOL) feature enables businesses to quickly and efficiently update drivers and software, conduct hardware and software audits, and perform other management tasks without interrupting PC users during work hours.
    This Fast Ethernet NIC also provides standard SNMP MIB support, as well as SmartStart support for Compaq server installation. Network activity can be monitored remotely with Compaq's CNMS network management software, Compaq Insight Manager1, or any SNMP-compliant management software. LEDs indicate link and network activity for at-a-glance troubleshooting.
    Product Features
    Feature Description
    Part Numbers Option #: 317600-B21

    Spare #: 317606-001

    Assembly #: 317607-001
    Implementation PCI Card
    Architecture Ethernet
    Bus interface PCI
    Compatibility IEEE 802.3/802.3u 10BASE-T and 100BASE-TX compatible
    Data Transfer Method 32 bit PCI bus-mastering PCI architecture
    Network Transfer Rate Data transfer rate of either 10 or 100 megabits per second?automatically negotiates to the highest common speed when connected to a network
    Standard Features
    • Glueless 32-bit PCI bus master interface
    • 82557-Style Chained Memory Structure streamlined for performance enhancement
    • Backwards compatible with 82557 software
    • Internal transmit and receive FIFOs (3 Kbytes each)
    • Back ?to-back transmit at 100 Mbs within minimum IFS
    • Flash support up to 64 Kbytes for LANDesk Service Agent and supported option roms
    • EEPROM support for configuration and customization feature section
    • ACPI and PCI Power Management standards compliant
    • Remote Wake Up (Magic Packet*) support in APM and ACPI modes
    • ACPI "interesting" packet wake up support in D0 to D3cold low power states
    • Integrated 100BASE-TX PHY and 10BASE-T Serial ENDEC (Encoder/Decoder) and transceiver with built in transmit and receive filters
    • Interface to MII compliant physical layer components (i.e., 100BASE-T4)
    • IEEE 802.3u Auto-Negotiation support for 10BASE-T and 100BASE-TX
    • Full or half duplex capable at 10 or 100 Mbps
    • IEEE 802.3x flow control support
    • Bay Technologies flow control support with the internal 100BASE-TX PHY
    • Test modes: Nand Tree and Test Access Ports
    • 5 Volt part
    • 208-pin SQFP (82558)
    • Three LED Support
    • Activity Led
    • Link Integrity LED
    • Speed LED
    Connector RJ-45
    I/O Address Auto-selected
    IRQ Auto-selected
    Controller or ASIC Intel 82558
    Environmental: Temperature

    Operating

    Non-operating
    U.S. and Metric

    10° to 55°C/50° to 131°F

    -20° to 65°C/-4° to 149°F
    Environmental: Humidity
    up to 85% (noncondensing)

    Eigenschaften

    • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
