HP Compaq NC3123 Fastethernet NIC 10/100 Base-T PCI WOL REF

ab 15,95 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 200902243
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

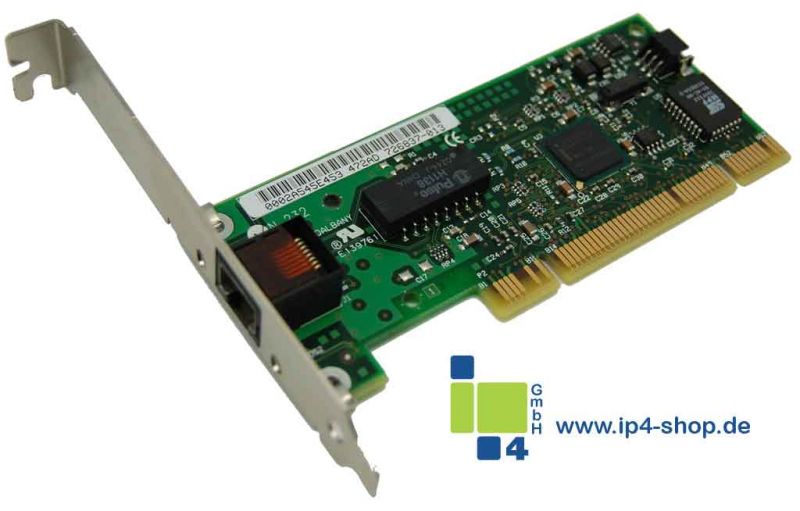

HP Compaq NC3123 Fastethernet NIC 10/100 Base-T PCI WOL REF
Modell:
174830-B21
Zustand: refurbished, 12 Monate ip4 Gewährleistung

  • Manufacturer: HP Compaq
  • Part/Assembly Number(s): 174829-001
  • Option/Retail Part Number: 174830-B21
  • Spare Number(s): 174831-001

    Compatible with Server Models:
    3000, 5500, 6000, 6400, 6500, 7000, 8000, 8500, CL1850, CL380, DL320 G1, DL360 G1, DL360 G2, DL380 G1, DL380 G2, DL580 G1, DL590, DL760 G1, ML330 G1, ML330 G2, ML350 G1, ML350 G2, ML370 G1, ML370 G2, ML530 G1, ML570 G1, ML750

  • NC3123 Fast Ethernet 10/100 PCI WOL NIC

    Provides connectivity between a computer system and a Local Area Network

    The Compaq NC3123 NIC uses a PCI v2.1/v2.2 bus architecture with the Intel 82559 chipset. The NIC supports emerging standards for system manageability and power management, such as ACPI and PC98. The Compaq NC3123 NIC has one RJ-45 port and auto-negotiates 10 or 100 Mb/s, depending on the speed of the device to which it is connected. Performance is further ensured with a 6 KB buffer memory which makes for low CPU utilization at high throughputs.
    The NC3123 features a robust plug and play capability for conflict-free auto configuration. Auto-sensing capabilities enable the NC3123 to automatically negotiate between 10 and 100 Mbps to achieve the highest common speed on the network. Compaq's SmartStart configuration utility includes setup support for the NC3123 so the NIC can be configured easily in server environments.
    The Wake on LAN feature lets designers build NICs that can ?listen to�? network activity even when the computer is turned off. WOL NICs have a special low-power standby mode that is active when the rest of the computer is without power. The NIC will respond to a special ?wake-up�? packet sent by another computer or network device. Typically this wake-up packet causes the NIC to signal the computer to power up. For the Wake on LAN (WOL) feature to work correctly, the NC3123 NIC must be connected to a continuous power source. This allows the NIC to listen to the network even when the computer is turned off.
    Along with Wake on LAN, the NC3123 also provides standard SNMP MIB support and can be remotely monitored with Compaq Network Management Software (CNMS), Compaq Insight Manager, or any SNMP-compliant management software. Supports DMI 2.0 (Desktop Management Interface) for inventory control and asset management. Supports Web-Based Enterprise Management (WBEM)
    The PCI Hot Plug capability enables PCI networking controllers to be replaced or added to a server without taking the system down.
    Network Fault Tolerance (NFT) is a simple, effective, and fail-safe approach to increase the reliability of server connections. NFT gives you the ability to set up link recovery to the server NIC in case of a cable, port, or NIC failure. By assigning two Compaq NICs as a team, NFT enables you to maintain uninterrupted network performance. During normal operation, the backup will have transmit disabled. If the link to the primary NIC fails, the link to the backup NIC automatically takes over.
    Adaptive Load Balancing (ALB) creates a team of NICs to increase a server's transmission throughput. ALF works with any 100Base-TX or Gigabit switch. With ALB, as NICs are added to the server, you can group them in teams to provide a single virtual NIC with increased transmission bandwidth. For example, an ALB team containing four Compaq Fast Ethernet NICs configured for full-duplex operation can provide an aggregate, maximum transmit rate of 400 Mb/s and a 100 Mb/s receive rate. In this example, total bandwidth is 500 Mb/s. To use ALB, you must install at least two Compaq NICs in the server and link these to the same network hub/switch.
    Product Features
    Feature Specification
    Part numbers Option Part #: 174830-B21

    Spare Part #: 174831-001

    Assembly #: 174829-001
    Bus interface PCI 32-bit, 33-MHz bus
    Data transfer 32-bit bus-master PCI, 10 or 100Mb/s, Auto negotiating
    Transmission modes Full and half duplex
    Compliance IEEE 802.3u (10/100 Base-TX)
    Power requirements 250mA @+5V max.
    Certifications FCC Class B, CE Mark, VCCI
    Connector One RJ-45 connectors
    Buffer memory 6KB per port
    Communication processor Intel 82559 chip set
    Supported cabling CAT 3, 4, 5 UTP (2 or 4 pair), Up to 100 meters (328 feet)
    Standard Features
    • Half- and full-duplex operation. Full Duplex at 20Mbps for Ethernet, 200Mbps for Fast Ethernet.
    • 6 KB of buffer memory, FIFO.
    • Automatically senses 10 and 100Mbps. Auto-negotiation (hardware and software implementations)
    • Network Fault Tolerance capability when configured with a 2nd NIC.
    • PCI Hot Plug compatible.
    • WOL, Wake On LAN using 3-pin header or through the PCI Bus.
    • AOL, Alert On LAN support.
    • ALB, Adaptive Load Balancing. and Cisco's Fast EtherChannel are two port bonding methods supported by the NC3123. ALB provides both failover and balancing of transmit traffic across NICs for increased performance.
    • Plug and Play capability and PCI 2.2 support.
    • 32-bit / 33 MHz Bus Mastering.
    • 32-bit, PCI 10/100 Wake on LAN (WOL)
    • Supports Windows NT4.0 and NT3.51, Novell NetWare 3.12, 3.2, 4.11, 4.2 and 5.0 and UNIX operating systems
    • LEDs for activity, link integrity, and speed (10 or 100 Mb/s)
    • PCI Hot Plug compliant (available on Microsoft NT 4.0 and NetWare 4.0, 4.11, 4.2, and 5.0)
    • Configurable for Network Fault Tolerance (NFT), Adaptive Load Balancing (ALB), and Cisco Fast EtherChannel operations under NetWare 4.0, 4.11, 4.2, and 5.0
    • One RJ-45 port operating at 10 or 100 Mb/s
    • 64/32-bit , 33 Mhz PCI host-interface compliant
    • ACPI and PC98 compliant
    • Built-in Compaq Network Teaming and Configuration (CPQNTAC) utility provides NIC teaming, diagnostics, and statistics for Windows NT 4.0 users and diagnostics and statistics for Windows NT 3.51 users. Windows 95 users can access CPQSET, a utility providing diagnostics and statistics.
    • Compaq SmartStart v4.4 compatible
    Operating system support
    • Microsoft Windows 95 & 98
    • Windows NT 3.5x & 4.0
    • Microsoft Windows 2000
    • Novell NetWare 3.12, 4.x & 5.x Server
    • IBM OS/2 Warp 4
    • MS-DOS Client 6.x / Windows 3.1 / Windows for Workgroups 3.11 with NDIS 2.0
    • SCO UNIX 5.x
    • SCO UnixWare 7.x
    • Linux.
    Operating temperature 0° to 55°C/32° to 131°F
    Shipping temperature -20° to 65°C/-4° to 149°F
    Operating humidity Non-condensing 90% - 10%
    Warranty information The NIC is covered by the Compaq Lifetime Limited Warranty. Contact  Technical Support at  800-652-6672 for details.

    Eigenschaften

    • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
