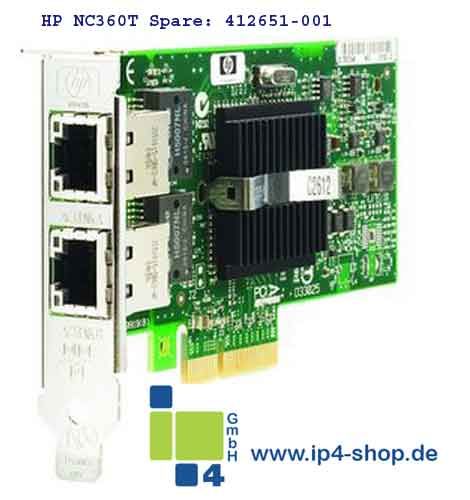

HP NC360T PCI Express Dual Port Gigabit Server PCI Express REF

ab 139,50 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 200901239
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

HP NC360T PCI Express Dual Port Gigabit Server PCI Express Ada
Modell:
412648-B21
Zustand: refurbished, 12 Monate ip4 Gewährleistung

  • Manufacturer: HP Compaq
  • Part/Assembly Number(s): 412646-001
  • Option/Retail Part Number: 412648-B21
  • Spare Number(s): 412651-001

    Compatible with Server Models: DL1000, DL120 G5/G6, DL140 G2/G3, DL145 G2/G3, DL160 G5/G6, DL160se G6, DL165 G5/G5p/G6/G7, DL170h G6, DL180 G1/G5/G6, DL185 G5, DL320 G4/G5/G5p/G6, DL320s, DL360 G4p/G5/G6/G7, DL365 G1/G5, DL370 G6, DL380 G4/G5/G6/G7, DL385 G2/G5/G5p/G6/G7, DL580 G3/G4/G5/G7, DL585 G2/G5/G6/G7, DL785 G5/G6, DL980 G7, ML110 G3/G4/G5, ML115 G1/G5, ML150 G2/G3/G5/G6, ML310 G3/G4/G5/G5p, ML330 G6, ML350 G5/G6, ML370 G4/G5/G6, ML570 G3, SL165z G7

  • The HP NC360T PCI Express Dual Port Gigabit Server Adapter is a high-performance PCI Express (PCIe), dual-port, copper, Gigabit network solution for HP ProLiant Server customers who demand the latest in dual-port Gigabit Ethernet bandwidth and features. The HP NC360T PCI Express Dual Port Gigabit Server Adapter offers two ports on a single PCI Express adapter, enabling customers to save valuable I/O slots for other uses. The adapter is based on the high performance Intel 82571EB chipset and offers a 4 lane (x4) PCI Express bus.

    Along with all the advanced features that HP ProLiant customers have come to expect, the HP NC360T PCI Express Dual Port Gigabit Server Adapter includes support for Wake-on-LAN (WOL) and pre-boot execution (PXE) environment. Additionally, it ships with support for Jumbo Frames, Network Fault Tolerance, Load Balancing, and various offload capabilities such as Segmentation Offload and Large Send Offload (LSO), which offer further network throughput improvements. The HP NC360T PCI Express Dual Port Gigabit Server Adapter is easy to install in either standard or low profile slots.

    Product Features
    Feature Description
    Part Numbers Option #: 412648-B21

    Spare #: 412651-001

    Assembly #: 412646-001
    Kit Contents The option kit contains the following items:
    • HP NC360T PCI Express Dual Port Gigabit Server Adapter with a standard-height bracket attached (the low-profile bracket is included in the clamshell in which the adapter ships)
    • Product Warranty statement and the Quick Install Card (QIC)
    • CD containing drivers, Installation and Diagnostic utilities, and the User Guide (English only)
    Server Support The following HP ProLiant Servers support the HP NC360T PCI Express Dual Port Gigabit Server Adapter:

    • HP ProLiant DL Series Servers (rack-optimized):
      • HP ProLiant DL140 G3
      • HP ProLiant DL145
      • HP ProLiant DL145 G2
      • HP ProLiant DL320 G3
      • HP ProLiant DL320 G4
      • HP ProLiant DL360 G4
      • HP ProLiant DL360 G4p
      • HP ProLiant DL360 G5
      • HP ProLiant DL380 G4
      • HP ProLiant DL380 G4 Packaged Cluster with MSA1000
      • HP ProLiant DL380 G4 Packaged Cluster with MSA500 G2
      • HP ProLiant DL380 G5
      • HP ProLiant DL580 G3
      • HP ProLiant DL580 G4
      • HP ProLiant DL585
      • HP ProLiant DL585 G2
    • HP ProLiant ML Series Servers (expansion-optimized):
      • HP ProLiant ML110 G3
      • HP ProLiant ML110 G4
      • HP ProLiant ML150 G2
      • HP ProLiant ML150 G3
      • HP ProLiant ML310 G3
      • HP ProLiant ML310 G4
      • HP ProLiant ML350 G4
      • HP ProLiant ML350 G4p
      • HP ProLiant ML350 G5
      • HP ProLiant ML370 G4
      • HP ProLiant ML370 G5
      • HP ProLiant ML570 G3
      • HP ProLiant ML570 G4


    NOTE: This is a list of supported servers. Some servers may be discontinued.
    Performance
    Gigabit Throughput Combined with Legacy Ethernet Support A 10/100/1000 Mbps Ethernet transfer rate delivers outstanding network performance that improves response time and removes bottlenecks. Because the HP NC360T PCI Express Dual Port Gigabit Server Adapter supports both 10-Mbps Ethernet and 100-Mbps Fast Ethernet in addition to Gigabit Ethernet, users can count on having end-to-end protocol support across their enterprise.
    PCI Express Interface HP was an early champion of PCI Express bus technology and has played a key role in the development and industry adoption of the PCI Express specification. The HP NC360T PCI Express Dual Port Gigabit Server Adapter features a high performance Intel 82571EB chipset and offers a four lane (x4) PCI Express bus based on the PCIe v 1.0a standard, yielding faster transmissions with lower CPU utilization than earlier solutions.
    Load Balancing Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB) are two advanced features that customers can use to build a bigger pipe for improved networking bandwidth. These port-bonding techniques enable users to install up to four HP NC360T PCI Express Dual Port Gigabit Server Adapters (for a total of eight ports) in an HP ProLiant Server, aggregating their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex transmissions.
    Jumbo Frames Jumbo frames (also known as extended frames) offer a 9,000-byte maximum transmission unit (MTU), which is six times the size of traditional Ethernet frames. The HP NC360T PCI Express Dual Port Gigabit Server Adapter supports jumbo frames as a way to achieve higher throughput and better CPU utilization when deployed in a network infrastructure that supports them. Jumbo frames are particularly useful for database transfers and tape backups.
    Offloading The HP NC360T PCI Express Dual Port Gigabit Server Adapter can improve network performance by providing these offloading functions:

    • TCP Checksum Offload, which reduces the load on the CPU.
    • Large Send Offload (LSO) and TCP Segmentation Offload (TSO), which enables the TCP segmentation to be handled by the adapter; thereby saving host CPU cycles for enhanced performance when there are large amounts of data sent across the network.
    • Interrupt Moderation, which groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties.
    Scalability and Reliability
    Dual Ports Two Gigabit ports enable users to save slots in situations where their servers are slot-constrained. HP has long been an advocate of dual-port adapters for servers. The HP NC360T PCI Express Dual Port Gigabit Server Adapter is the latest in our legacy of best-of-breed dual-port devices for HP ProLiant servers.
    Network Fault Tolerance (NFT) Network Fault Tolerance, sometimes called "failover" or "NIC Redundancy," enables the installation of multiple server adapters so that the active device can be backed up by a redundant adapter to improve availability. The HP Teaming utility also enables users to specify that when a failed adapter is fixed and replaced, the original adapter resumes its function as the primary network connection.
    Distance Capabilities The HP NC360T PCI Express Dual Port Gigabit Server Adapter supports cable runs up to 100 meters (328 feet).
    Network Management
    Auto-Negotiation The HP NC360T PCI Express Dual Port Gigabit Server Adapter automatically senses and configures itself to the speed of the device to which it is attached. It also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or router at the other end of the cable.
    Wake-on-LAN The HP NC360T PCI Express Dual Port Gigabit Server Adapter provides Wake-on-LAN (WOL) support through the PCI Express bus. A system that supports WOL can remain available to a systems administrator during its normal downtime. Once the machine is awakened, the systems administrator can remotely control, audit, debug, or manage the machine.
    Management Support Similar to all HP ProLiant server adapters, the HP NC360T PCI Express Dual Port Gigabit Server Adapter ships with drivers and agents that can be managed from all versions of the HP Systems Insight Manager (HP SIM). Additionally, it supports any management application that support SNMP.
    Server Integration The SmartStart configuration utility includes setup support for the HP NC360T PCI Express Dual Port Gigabit Server Adapter, enabling the adapter to be configured as part of the SmartStart configuration process. HP SIM can recognize the HP NC360T PCI Express Dual Port Gigabit Server Adapter individually or in a port-bonded team, and HP SIM can collect and report SNMP statistics on the adapter events. Integrated Management Log (IML) support is provided by the HP NC360T PCI Express Dual Port Gigabit Server Adapter for critical event logging on HP ProLiant servers.
    Configuration Utilities Each HP NC360T PCI Express Dual Port Gigabit Server Adapter ships with a set of utilities that enable the user to:

    • Enable initial diagnostics within Microsoft Windows, Linux, Netware, and DOS operating systems.
    • Configure network adapter teaming in a Microsoft Windows environment. The Windows adapter teaming configuration utility includes a patented teaming GUI for the Microsoft Windows 2000 and 2003 Operating Systems. Support for scripted installations of teams in a Microsoft Windows environment allow for unattended operating system installations.
    LED Indicators Bracket LED indicators show link integrity, network activity, and speed on each port for easy troubleshooting.

    Eigenschaften

    • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
