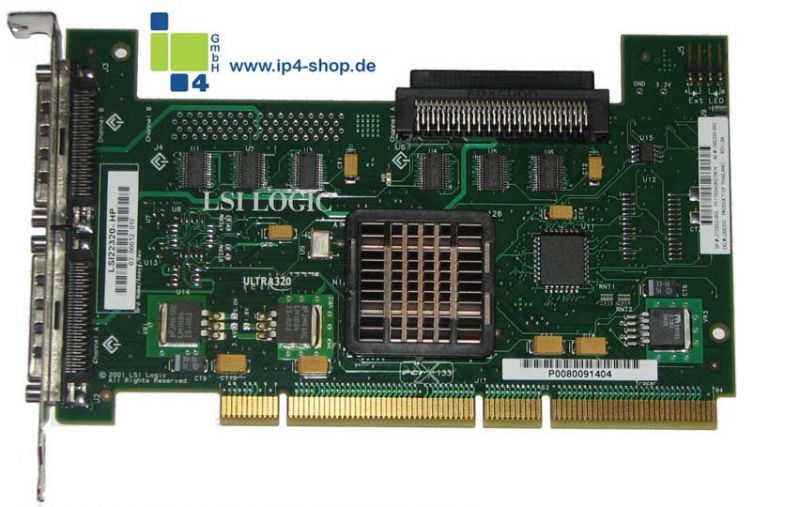

HP LSI22320-HP 64-bit/133MHz Dual Channel UW320 SCSI Host Bus Adapter REF

ab 59,00 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 200908306
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

HP LSI22320-HP 64-bit/133MHz Dual Channel UW320 SCSI Host Bus Adapter REF
HP-Modell: 268351-B21
Zustand: refurbished, 12 Monate ip4 Gewährleistung

Part/Assembly Number(s): 268350-001

Option/Retail Part Number: 268351-B21
Spare Number(s): 272653-001

Compatible with Server Models: DL145 G1, DL320 G1, DL320 G2, DL320 G3, DL360 G2, DL360 G3, DL360 G4, DL380 G2, DL380 G3, DL560, DL580 G1, DL580 G2, DL740, DL760 G1, DL760 G2, ML310 G1, ML310 G2, ML330 G2, ML330 G3, ML350 G3, ML350 G4, ML370 G3, ML570 G1, ML570 G2

Produktbeschreibung vom Hersteller ip4-shop HP QuickSpecHP-SCSI-Controller-LSI22320

Overview:

The HP 64-bit/133-MHz Dual Channel Ultra320 SCSI Adapter provides customers with the flexibility and speed they have come to expect from HP. The 64-bit/133-MHz Dual Channel Ultra320 SCSI Adapter is ideal for HP tape arrays and larger non-RAID storage applications. This adapter supports Ultra 320 SCSI, Wide Ultra3 SCSI, and Wide Ultra2 SCSI protocols. It is the primary building block for non-RAID SCSI storage solutions that provide the maximum of 320 MB/second bandwidth, twice the speed of HP's current SCSI adapters. HP's 64-bit/133-Mhz Dual Channel Ultra320 SCSI Adapter has two primary uses: high-end tape backup and large JBOD file and print applications. Neither application requires fault tolerance but both have large bandwidth requirements.

HP's 64-bit/133-MHz Dual Channel Ultra320 SCSI Adapter has been thoroughly tested and integrated into many of the HP ProLiant servers. When you need an Ultra320 storage solution, think HP!

Specification:
General
Device Type Storage controller - plug-in card
Interface Type PCI-X / 133 MHz
Storage Controller
Controller Interface Type Ultra320 SCSI
Data Transfer Rate 320 MBps
Supported Devices Hard drive, tape drive
Channel Qty 2
Max Storage Devices Qty 28
Expansion / Connectivity
Interfaces 2 x storage - Ultra320 SCSI LVD - 68 pin VHDCI (mini-Centronics) ( external ) ¦ 1 x storage - Ultra320 SCSI LVD - 68 pin HD D-Sub (HD-68) ( internal )
Compatible Slots 1 x PCI-X / 133 MHz
Software / System Requirements
OS Required Microsoft Windows NT 4.0, Microsoft Windows 2000, Microsoft Windows XP, SuSE Linux 7.0, Red Hat Linux 7.3, Red Hat Linux 8.0, Red Hat Linux Advanced Server 2.1, Microsoft Windows .NET

Eigenschaften

  • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
