HP NC380T PCI Express Dual Port Gigabit Server PCI Express REF

ab 29,50 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 201306816
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

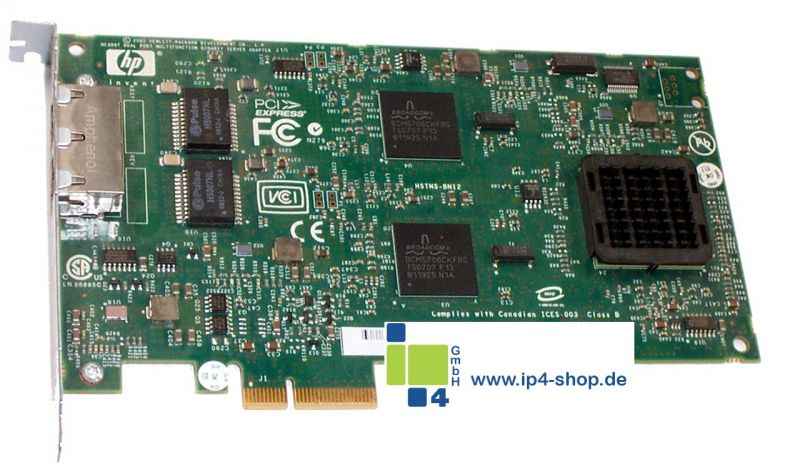

HP NC380T PCI Express Dual Port Gigabit Network NIC Adapter refurbished
Modell:
394795-B21
Zustand: refurbished, 12 Monate ip4 Gewährleistung

  • Manufacturer: HP Compaq
  • Part/Assembly Number(s): 012392-002
  • Option/Retail Part Number: 394795-B21
  • Spare Number(s): 374443-001
  • Compatible with Server Models: DL1000, DL120 G5/G6, DL140 G2/G3, DL145 G2/G3, DL160 G5/G6, DL160se G6, DL165 G5/G5p/G6/G7, DL170h G6, DL180 G1/G5/G6, DL185 G5, DL320 G4/G5/G5p/G6, DL320s, DL360 G4p/G5/G6/G7, DL365 G1/G5, DL370 G6, DL380 G4/G5/G6/G7, DL385 G2/G5/G5p/G6/G7, DL580 G3/G4/G5/G7, DL585 G2/G5/G6/G7, DL785 G5/G6, DL980 G7, ML110 G3/G4/G5, ML115 G1/G5, ML150 G2/G3/G5/G6, ML310 G3/G4/G5/G5p, ML330 G6, ML350 G5/G6, ML370 G4/G5/G6, ML570 G3, SL165z G7

    Overview

    HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter

    The HP NC380T server adapter is the industry's first PCI Express dual port multifunction network adapter supporting TOE (TCP/IP Offload Engine) for Windows, and iSCSI (Internet Small Computer System Interface) over a single network connection. Each port on the NC380T is a four lane (x4) serial device designed for PCI Express slots. The NC380T comes with a total of 184KB onboard memory.

    In addition to its multifunction capabilities, the NC380T ships with all the advanced server features that ProLiant customers have come to expect, such as support for failover and load balancing, Pre-Boot Execution Environment (PXE), large send offload capability, multiple VLAN tagging, auto-negotiated 10/100/1000Mbps Ethernet speeds and IPv6 packet transmit and receive support (excluding all offload capabilities).




    Models
    HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
    NOTE: Supported on a Full Length-Full Height slot only
    394795-B21

    Kit Contents
    1. HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter in an anti-static bag
    2. Quick install card
    3. Product warranty statement

    Standard Features
    Server Support

    ProLiant DL (rack-optimized):

    • HP ProLiant DL140 G3
    • HP ProLiant DL145 G2
    • HP ProLiant DL145 G3
    • HP ProLiant DL160 G5
    • HP ProLiant DL165 G5
    • HP ProLiant DL180
    • HP ProLiant DL180 G5
    • HP ProLiant DL185 G5
    • HP ProLiant DL320 G3
    • HP ProLiant DL320 G4
    • HP ProLiant DL320 G5
    • HP ProLiant DL320 G5p
    • HP ProLiant DL360 G4p
    • HP ProLiant DL360 G5
    • HP ProLiant DL365
    • HP ProLiant DL365 G5
    • HP ProLiant DL380 G4
    • HP ProLiant DL380 G4 Packaged Cluster with MSA1000
    • HP ProLiant DL380 G4 Packaged Cluster with MSA500 G2
    • HP ProLiant DL380 G5
    • HP ProLiant DL385 G2
    • HP ProLiant DL580 G4
    • HP ProLiant DL580 G5
    • HP ProLiant DL585 G2
    • HP ProLiant DL585 G5
    • HP ProLiant DL785 G5
    • HP ProLiant DL785 G6

    ProLiant ML (expansion-optimized):

    • HP ProLiant ML310 G4
    • HP ProLiant ML310 G5
    • HP ProLiant ML310 G5p
    • HP ProLiant ML350 G4p
    • HP ProLiant ML350 G5
    • HP ProLiant ML370 G4
    • HP ProLiant ML370 G5
    • HP ProLiant ML570 G3
    • HP ProLiant ML570 G4

    NOTE: This is a list of supported servers. Some may be discontinued.


    Performance
    Gigabit Ethernet Throughput 10/100/1000Mbps Ethernet transfer rate delivers outstanding network performance that improves response time and removes bottlenecks across the entire network.

    TCP/IP Protocol
    Offloading
    TCP/IP Offload Engine (TOE) for Windows moves the processing of data in the TCP protocol stack from the server CPU to the network card, freeing CPU cycles for other duties. The NC380T supports TOE when Windows TOE Chimney is installed. With TOE, network communications are improved, and server efficiency is increased.

    Accelerated iSCSI
    Accelerated iSCSI allows the NC380T to multi-function both as a network adapter and as a storage host bus adapter, thereby providing access to storage boxes and to servers over a single connection. Additionally, the NC380T offloads the iSCSI software to the hardware for improved performance.
    Accelerated iSCSI on 1GbE multifunction server adapters purchased as options ships as a standard feature, at no additional charge.

    Load Balancing Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB) are two advanced features used to build a bigger pipe for improved networking bandwidth. These port bonding techniques enable users to install up to two NC380T adapters in a ProLiant server and aggregate their throughput up to a theoretical maximum of four Gigabits per second full-duplex transmission. The NC380T can be configured to work with other NC-series Ethernet server adapter teams supported on ProLiant servers.

    Checksum and Segmentation Offloads and Interrupt Coalescing The NC380T features TCP Checksum Offloads as well as TCP Segmentation Offloads and Interrupt Coalescence. These features reduce the load on the CPU for overall improved system response. Interrupt Coalescence is a feature that groups multiple packets and issues a single interrupt to the host. This process improves host efficiency.

    Scalability and Reliability
    Tri-Speed Support Because the NC380T supports 10Mbps Ethernet and 100Mbps Fast Ethernet in addition to Gigabit Ethernet, users are guaranteed end-to-end protocol support across their enterprise. Like all HP server adapters, the NC380T adheres to industry open standards, insuring that it will perform seamlessly with any network devices that also support IEEE standards.

    Network Fault Tolerance (NFT) Network Fault Tolerance, sometimes called "failover" or "NIC redundancy", allows for the installation of multiple NC380T server adapters or other network adapters so that the active device can be backed up by a redundant adapter to improve availability. The HP teaming utility also allows users to specify that when a failed adapter is fixed and replaced, the original adapter resumes its function as the primary network connection.

    Network Management
    Auto-negotiation The NC380T automatically senses the speed of the device to which it is attached. It also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or router at the other end of the cable.

    Management Support
    Like all HP server adapters, the NC380T ships with drivers and agents that can be managed from all versions of HP Systems Insight Manager, as well as using any management application that supports SNMP.

    Server Integration
    HP Systems Insight Manager can recognize the NC380T individually or in port-bonded teams, and can collect and report SNMP statistics on the adapter events. Additionally, Integrated Management Log (IML) support is provided by the NC380T for critical event logging on HP servers.

    Configuration Utilities

    Each NC380T ships with a set of utilities that allow the user to:

    • Enable initial diagnostics within Windows, Linux, and DOS operating systems.
    • Configure network adapter teaming in a Windows environment. The Windows adapter teaming configuration utility includes a patented teaming GUI for Microsoft Windows 2000 and 2003 operating systems. Support for scripted installations of teams in a Microsoft Windows environment allow for unattended OS installations.

    LED Indicators

    Bracket LED indicators show link integrity, network activity, and network speed for easy troubleshooting.

    Eigenschaften

    • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
