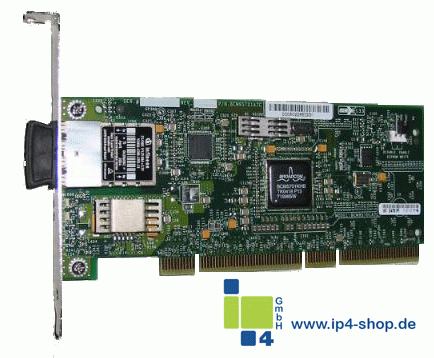

HP NC6770 PCI-X 133 Gigabit Server Adapter, 1000-SX
Modell: 244949-B21
Zustand: refurbished, 12 Monate ip4
Gewährleistung
Manufacturer: HP Compaq
Model: NC6770
Spare Part# 247000-001,
24700-001
HP NC6770 PCI-X 133 Gigabit Server Adapter, 1000-SX
Modell: 244949-B21
Compatible with Server Models:
DL320 G2, DL360 G2, DL360 G3, DL380 G2, DL380 G3, ML310 G1, ML330 G3, ML350 G3,
ML370 G3
Description: Nc6770 Pcix Gigabit Enet Server Adapter
1000sx Option Part#
244949-B21
Overview: The ProLiant NC6770
PCI-X Gigabit Server Adapter is HP's first fiber-optic networking solution
to combine Gigabit Ethernet speed with PCI-X bus technology. The NC6770 is
a single port Gigabit adapter that supports 1000Mbps speed. Along with
other the advanced features that ProLiant customers have come to expect,
the NC6770 includes support for network failover and load balancing, PCI
hot plug capability, Jumbo Frames, Dual Address Cycles (DAC), large "send"
offload capability, and Pre-boot Execution Environment (PXE). The NC6770
PCI-X Gigabit Server Adapter solves customer problems by bringing
near-wire speed performance to fiber-optic cabling plants, thereby
allowing customers to protect their investment in a fiber-optic
infrastructure. Furthermore, the increased capability of the NC6770's
PCI-X data path helps to remove network bottlenecks in even the most
congested networks. The NC6770 PCI-X Gigabit Server Adapter allows
ProLiant customers to easily move from twisted-pair to fiber-optic
cabling. This decision is typically motivated by the need to support
greater distances, the desire for greater security, or for EMI protection
in noisy environments, e. g. manufacturing plants. Some customers want to
future-proof their environment by deploying fiber-optic cabling to support
Ethernet Gigabit speeds rather than use copper wiring for their Ethernet
Gigabit requirements.
|
Specifications: |
Category |
Proliant |
Sub-Category |
Server adapter |
Generation |
NC6770 |
Part Number |
244949-B21 |
Products ID |
141831 |
Products Weight |
5.00 lbs |
Form Factor |
Plug-in card |
Interface (Bus) Type |
PCI-X / 133 MHz |
Dimensions (WxDxH) |
6.5 in x 2.5 in |
Cabling Type |
Ethernet 1000Base-SX |
Data Link Protocol |
Gigabit Ethernet |
Data Transfer Rate |
1 Gbps |
Network / Transport Protocol |
TCP/IP |
RAM |
96
KB | |
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand,
jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
