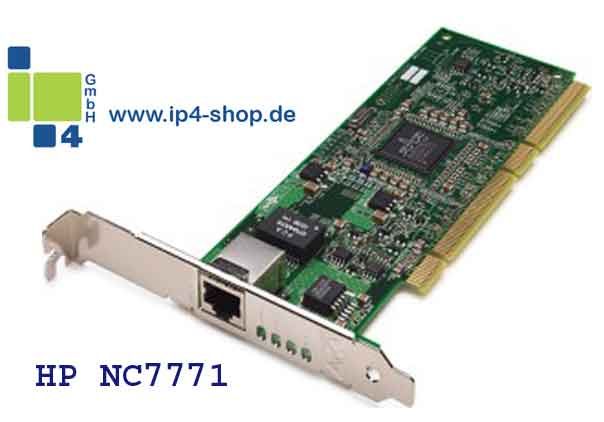

HP 268794-001 NC7771 PCI-X 10/100/1000-T Server Adapter
Modell: 290563-B21
Zustand: refurbished, 12 Monate ip4
Gewährleistung
Manufacturer: HP Compaq
Part/Assembly Number(s): 268496-002
Option/Retail Part Number: 290563-B21
Spare Number(s): 268794-001, 404820-001
Compatible with Server Models: DL140
G1/G2, DL145 G1/G2, DL320 G3/G4, DL360 G3/G4/G4p, DL365 G1, DL380 G3/G4, DL385
G1/G2, DL560, DL580 G2/G3/G4, DL585 G1/G2, DL740, DL760 G2, ML110 G1, ML310 G2,
ML330 G3, ML350 G3/G4, ML370 G3/G4, ML570
G2/G3/G4
Description: NC7771 Gigabit Server
Adapter PCI-X 64/133 10/100/1000-T Option Part#
290563-B21
Overview: The HP NC7771
PCI-X Gigabit Server Adapter is a follow-on to the NC7770. The NC7771 is a
single port copper, PCI-X, Gigabit server adapter that runs over Category
5 (or better) twisted-pair cabling. Along with all the advanced features
that ProLiant customers have come to expect, the NC7771 includes support
for teaming for failover and load balancing, jumbo frames, Dual Address
Cycles (DAC), Pre-Boot Execution Environment (PXE), PCI hot plug, large
send offload capability, cold boot WOL, and multiple VLAN tagging.
|
Specifications: |
Category |
Proliant Option |
Sub-Category |
Communications |
Generation |
1000T |
Part Number |
290563-B21 |
Products ID |
8700 |
Products Weight |
0.25 lbs |
Interface Compatibility |
PCI - PCI-X |
Standard Data Rate(s) |
1 Gbps, 10 Mbps, 100 Mbps |
Max. Data Transfer Rate |
1000 Mbps |
Duplex Mode |
Half Duplex, Full Duplex |
Cabling Type |
Ethernet 1000Base-T, Ethernet
100Base-TX |
Networking Connectors |
RJ-45 |
Bus Clock Rate |
133 MHz |
Bus Clock Bits |
64 bit |
Power Management |
ACPI, Wake-on-LAN |
Power Requirements |
5 Volts |
LED Indicators |
10 Mbps, 100 Mbps, 1000 Mbps |
Management |
SNMP |
Dimensions (DxH) |
6.6 in x 2.5
in | |
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand,
jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
