HP Storageworks MSA30 SB Single Bus Enclosure 302969-B21 REF

Kategorie

MSA Modular Smart Arrays

Hersteller

HP Hewlett-Packard

Beschreibung

Hinweise:

Achtung, abweichend vom Bild werden standardmäßig keine Blindblenden für Festplattenslots, Rackmountkits und Festplatten mitgeliefert, diese können Sie seperat hier im Shop ordern.
Zustand: used / refurbished

Produktbeschreibung vom Hersteller

HP 302969-B21Storageorks MSA30

Produkt - Spezifikationen

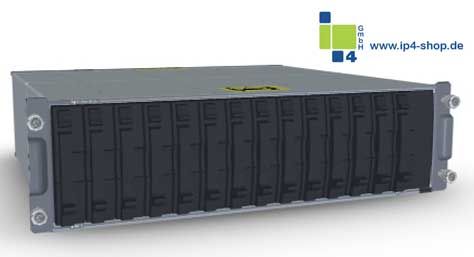

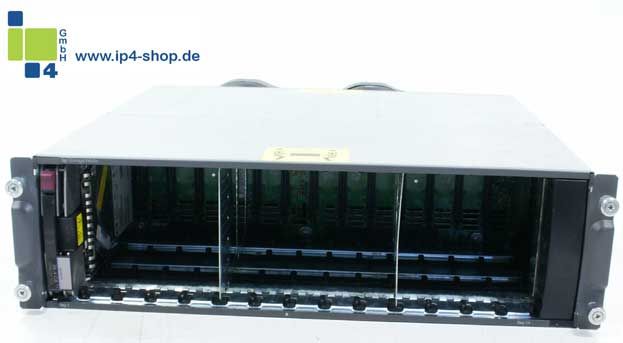

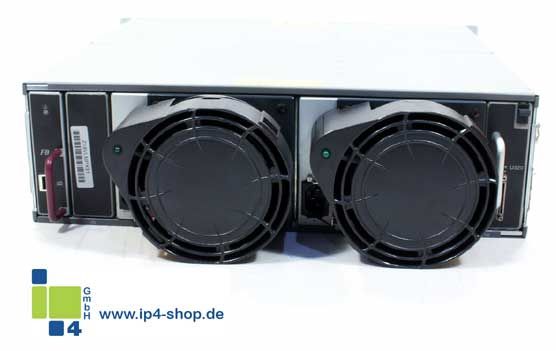

Model / Typ:	HP StorageWorks MSA 30 SB Enclosure 302969-B21 REF (formerly known as HP StorageWorks 4414R Enclosure) 14 drive UW320 enclosure with single bus, redundant power supplies, Server Rack-Montage 19" 3U (3HE)
HP Nummer / Typ:	302969-B21 HP Sparepart: 123476-003

EMU Modul:	1x installiert
I/0 Modul	1x UW320 SCSI mit VHDCI Anschluss (max 2)
Fesplatten / HDs:	ohne bitte extra bestellen, Aufnahme max. 14 Stück
Datenübertragungsrate:	320 MBit/s
Schnittstellen:	1x VHDCI SCSI Ulltra 320 (Mini-Centronics), 68-polig
Stromversorgung	2 Netzteile, (max. 2 Netzteile) Wechselstrom 120/230 V (50/60 Hz)
Maße (B x T x Höhe):	Breite: 44.5 cm, Tiefe: 52.0 cm, Höhe: 13.1 cm
Gewicht:	24,0 kg
Lieferumfang	Enclosure , inkl. Stromkabel ohne Software / Treiber und weiteres Zubehör ohne Fesplattenblindblenden, Netzteilblindblenden (bitte Anzahl seperat ordern)
Garantie:	12 Monate ip4 Gewährleistung Erweiterung Möglich über Optionauswahl

Overview

HP StorageWorks 30 Modular Smart Array Single Bus or Dual Bus Enclosures

(formerly known as HP StorageWorks 4400 Enclosure)

The HP StorageWorks Modular Smart Array 30 Single Bus or Dual Bus Enclosures (hereafter referred to as "MSA30 SB or MSA30 DB") is an Ultra320 SCSI disk drive storage enclosure. These enclosures deliver industry-leading data performance, availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The drive carrier is designed to support the fastest current Ultra320 hard drives on the same SCSI bus. The ease of upgrading the StorageWorks 4200 or the StorageWorks 4300 Enclosure to the MSA30 proves that HP provides the lowest cost of ownership. The MSA30 SB and DB enclosures support HP Integrity and HP ProLiant servers in addition to HP 9000 and HP Alpha Servers. Proving that technology transitions can proceed smoothly without disrupting critical business environments.

NOTE: All models of the MSA30 (Formerly StorageWorks 4400) Enclosure Family have the following features:
Ultra320 (LVD) support - Delivering data transfer rates up to 320 MB/s per channel NOTE: U320 performance requires a compatible U320 controller. This is noted in the product documentation.
3U rack height. Supports up to 14 (1-inch) Ultra320 (as well as legacy Ultra3 and Ultra2 drives) Universal hard disk drives. Provides storage capacity of up to 4.2TB per enclosure (using 300GB 1-inch disk drives) Modular design allows the MSA30 to be used in any storage configuration from JBOD (Just a Bunch of Disks) to Smart Array storage enclosures to external RAID arrays. Up to 14 enclosures can be mounted in one 42U rack for a single rack storage capacity of up to 28.4TB of disk storage (JBOD configuration) or up to 12 enclosures in an EMA16000 (HSG80 configuration) for a single rack storage capacity of 24.4TB. A common storage platform allows for future storage consolidation to the SAN. Award-winning innovative SCA (Single Connect Attach) direct connect drive carrier - provides better cooling and reliability for 10K and 15K drives. Hot pluggable disk drives, power supplies, and fans. Redundant fans, dual power supplies and single or dual bus I/O module options. Environmental Monitoring Unit (EMU) - Monitors environmental conditions within the enclosure and components such as the power supplies and fans.
NOTE: A U320 compatible EMU is required for a U320 I/O module. This is included with a MSA30 but must be deployed if an upgrade option kit is purchased for a StorageWorks 4200/4300 Enclosure.

Eigenschaften

Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
