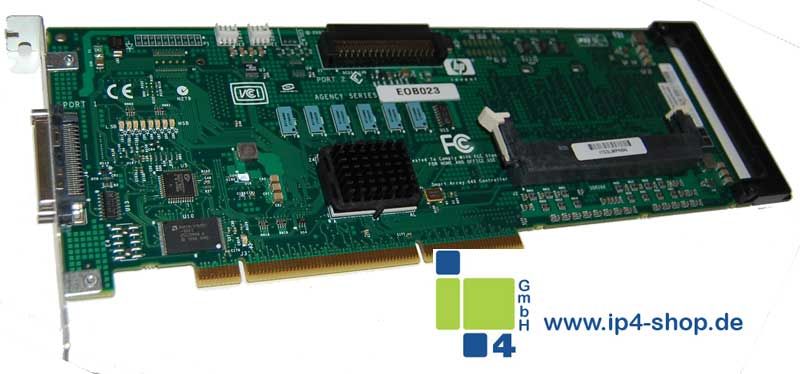

HP Smart Array 642 Raidcontroller 64 MB Cache UW320 PCI-X 133 Mhz 2CH REF

ab 89,00 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 201009480
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

HP Smart Array 642 Raidcontroller 64 MB Cache UW320 PCI-X 133 Mhz 2CH REF
Modell:
291967-B21

Zustand: refurbished, 12 Monate ip4 Gewährleistung

Part/Assembly Number(s): 011815-001
Option/Retail Part Number: 291967-B21 same as 291967-B21
Spare Number(s): 305415-001, 011815-001

Compatible with Server Models: BL40p, DL320 G2/G3/G4/G5/G5p, DL360 G3/G4/G4p/G5, DL380 G3/G4/G5, DL385 G1/G2/G5/G5p, DL560, DL580 G2/G3/G4, DL585 G1/G2, DL740, DL760 G2, ML310 G1/G2/G3, ML330 G2/G3, ML350 G3/G4/G5, ML370 G3/G4/G5, ML530 G2, ML570 G2/G3/G4

contents
 Overview      Standard Features      Compatibility      Service and Support, HP Care Pack, and Warranty Information      Related Options      Technical Specifications line.gif (50 bytes)

Overview

HP Smart Array 642 Controller

The Smart Array 642 Controller (SA-642) is a 64-bit, 133-MHz PCI-X, dual channel, SCSI array controller for entry-level hardware-based fault tolerance. Utilizing both SCSI channels of the SA-642 allows you to configure up to 6 internal and 14 external hard drives to store up to 6 TB of storage.

The 64MB and 128MB BBWC (Battery Backed Write Cache) Enabler upgrade allows the SA-642 controller an option to add transportable BBWC for improved controller performance and increases the total controller memory, up to 192MB. The SA-642 also features complete data compatibility with previous generation's Smart Array controllers to ease data migration from server to server and for easy controller upgradeability.


Models
Smart Array 642 Controller
Smart Array 642 Controller
291967-B21
contents
 Overview      Standard Features      Compatibility      Service and Support, HP Care Pack, and Warranty Information      Related Options      Technical Specifications line.gif (50 bytes)

Standard Features

The Smart Array Advantage HP's innovative design and integration work of the Smart Array family of products creates customer value that is unmatched in the industry. Use of Smart Array products across multiple applications results in a much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP Smart Array family brings an unparalleled return on investment through:
Data Compatibility among all models of Smart Array controllers allows simple and easy upgrades any time needs for higher performance, capacity, and availability increase. Even successive generations of Smart Array controllers understand the data format of other Smart Array Controllers.
Consistent Configuration and Management Tools. All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain the HP server storage.
Universal Hard Drive form factor is for use across multiple HP servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives.
Pre-Failure Warranty means HP Insight Manager not only reports when a drive is going to fail but allows replacement of failing drives prior to actual failure. For complete details, consult the HP Support Center or refer to your HP Server documentation.

Key Features
  • Compatibility with all Ultra320, Ultra3 and Ultra2 LVD family products. In addition, a seamless upgrade to next generation HP high performance and high capacity mainstream Ultra320 Smart Array controllers.
  • Recovery ROM protects against a ROM corruption.
  • Ultra320 SCSI technology delivers high performance and data bandwidth up to 320-MB/s bandwidth per channel.
  • Modular, easy-to-upgrade design lets you optimize performance as needed with the 64MB and 128MB BBWC Enabler, from 64-MB of memory for RAID and read cache to up to 128-MB of BBWC.
  • Mix-and-match LVD SCSI compatibility protects your investments and lets you deploy drives as needed.
  • Software consistency among all Smart Array family products: Array Configuration Utility, Insight Manager (CIM), Array Diagnostic Utility (ADU) and SmartStart.
  • 64-bit, 133-MHz PCI-X interface boosts bandwidth above 1B/s burst transfer rate over PCI-X bus.
  • 64-bit memory addressing supports servers with greater than 4 GB of memory.
  • 64-MB memory optimizes performance and data throughput.
    NOTE: 64 MB of DDR memory used for RAID and read cache.

Online Management Features
  • Online Capacity Expansion
  • Online RAID Level Migration
  • Online Stripe Size Migration
  • Online Spares (Global)
  • User Selectable Expand and Rebuild Priority

Channels
  • Dual Channel: Provides the ability to support up to 20 (6 internal, 14 external) drives or 6.0 TB

Key Features for 64MB BBWC (Battery-Backed Write Cache) Enabler

  • Battery-backed Cache protects cached data in the event of a power outage, server failure or controller failure.
  • 72 hours of battery charge protects the data for an entire weekend.
  • 3 years of battery life.
  • Modular, easy-to-upgrade design lets you optimize performance as needed with the 64MB BBWC Enabler, from 64-MB of memory for RAID and read cache to 128-MB of memory for RAID, read cache, and BBWC.

Key Features for 128-MB BBWC (Battery-Backed Write Cache) Enabler

The 128MB BBWC Enabler is a transportable 128MB battery module increasing the total memory of the controller to 192MB for RAID, read cache, and BBWC. The transportability of the battery memory module protects the write cache data from unexpected power loss, system board failure, or controller board failure. Data retained in the write cache will be protected for up to 72 hours, allowing time to restore power, or transport the module to a functioning system board or array controller. The modular design of the battery memory module is transportable between the Smart Array 641 and Smart Array 642 controllers.

128MB BBWC (Battery Backed Write Cache) Enabler allows the 642 controllers an option to add transportable BBWC for improved controller performance and increases the total controller memory to 192MB.

Data Compatibility

Data compatibility among all models of Smart Array Controllers means customers can instantly upgrade their Smart Array products to get to higher performance, capacity and availability. Unlike competitive products, successive generations of Smart Array products understand the data format of other Smart Array controllers, providing investment protection for your HP storage solution.

Performance

HP's High Performance Architecture sets new boundaries of industry performance expectations!

  • Ultra320 SCSI (320 MB/s bandwidth) per channel
  • High-performance 64-bit architecture
  • 64-bit, 133-MHz PCI-X bus (1033 MB/s bandwidth)

Capacity

Given the internal server storage need for rapid capacity expansion, the SA-642 offers:

  • Dual SCSI channels support up to 20 (6 internal, 14 external) disk drives
  • Up to 6.0TB of storage per PCI slot

Availability

Provides increased server uptime by providing advanced storage functionality:

  • Online RAID Level Migration (between any RAID level)
  • Online Capacity Expansion
  • Logical Drive Capacity Extension
  • Global Online Spare
  • Pre-Failure Warranty


Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

  • S.M.A.R.T.: Self Monitoring Analysis and Reporting Technology first developed at Compaq detects possible hard disk failure before it occurs, allowing replacement of the component before failure occurs.
  • Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.
  • Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.
  • Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.
  • Environment Tracking for External Storage System: Monitors fan speed and cabinet temperature of ProLiant Storage System and newer HP storage enclosures.

Fault Tolerance

Keeps data available and server running while a failed drive is being replaced; several fault tolerance configurations are supported including:

  • Distributed Data Guarding (RAID 5): This allocates parity data across multiple drives and allows simultaneous write operations. It is recommended for up to 14 hard drives.
  • Drive Mirroring (RAID 1, 1+0): This allocates half of the drive array to data and the other half to mirrored data, providing two copies of every file. It is a high-performance RAID.

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

  • Recovery ROM: This new feature provides a unique redundancy feature that protects from a ROM image corruption. A new version of firmware can be flashed to the ROM while the controller maintains the last known working version of firmware. If the firmware becomes corrupt, the controller will revert back to the previous version of firmware and continue operating. This reduces the risk of flashing firmware to the controller.
  • On-Line Spares: Up to two spare drives can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically.
    NOTE: On-Line Spares can only be used with RAID level 1, 1+0, and 5.

Ease of Use

Consistency and Upgradeability make the Smart Array family unique in the industry:

  • GUI based configuration, management and diagnostic software tools
  • Common data format between generations of products
  • Data migration between servers and external storage enclosures
contents
 Overview      Standard Features      Compatibility      Service and Support, HP Care Pack, and Warranty Information      Related Options      Technical Specifications line.gif (50 bytes)

Compatibility

Servers Compatibility

For up to date compatibility, please see the following URL for complete Smart Array 642 Controller compatibility and support information:
http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

Operating Systems Microsoft Windows Server
Microsoft Windows Server Hyper-V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
Solaris 10 for x86/x64 based Systems
VMware
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server and Smart Array RAID controller, please visit our Support Matrix at: http://www.hp.com/go/ossupport

NOTE: For more Linux OS support & certification information, please visit:


Software Suite All Smart Array products share a common set of configuration, management and diagnostic tools, including Array Configuration Utility, Array Diagnostic Utility (ADU), and Insight Manager. This software consistency of tools reduces the cost of training for each successive generation of product and takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of ownership by reducing training and technical expertise necessary to install and maintain the HP server storage.
Insight Manager
  • Powerful server and server options/storage manager tool
  • Monitors over 1200 server parameters
  • Configuration/Diagnostic Utilities
  • HP Array Configuration Utility (ACU)
  • Powerful Web based configuration utility for all Smart Array controllers
  • Provides a graphical view of HP drive array configurations
  • Allows for management of multiple arrays over a secure internet connection from anywhere in the world
  • Easy to use Wizards for configuration
  • Runs online on Windows and NetWare
  • HP Options ROM Configuration for Arrays (ORCA)
  • Rapid configuration during initial install of the OS
  • HP Array Diagnostic Utility (ADU)
  • Powerful diagnostic utility for all Smart Array controllers
contents
 Overview      Standard Features      Compatibility      Service and Support, HP Care Pack, and Warranty Information      Related Options      Technical Specifications line.gif (50 bytes)

Service and Support, HP Care Pack, and Warranty Information

Warranty
Maximum: The remaining warranty of the HP server product in which it is installed (to a maximum three-year limited warranty)
Minimum: One-year, on-site limited warranty
Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support Center or refer to your HP Server Documentation.

Software Product Services
Standalone telephone support
Rights to new license version
Media and documentation updates

Hardware Product Services Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
For additional hardware installation and maintenance information, please refer to the URL:
http://www.hp.com/hps/hardware/

Warranty Upgrade Options Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration - Select duration of coverage for a period of 1, 3, or 5 years

HP Care Pack Information HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional HP Care Pack (hardware & software) information, as well as orderable part numbers, please refer to the URL http://www.hp.com/hps/carepack/
contents
 Overview      Standard Features      Compatibility      Service and Support, HP Care Pack, and Warranty Information      Related Options      Technical Specifications line.gif (50 bytes)

Related Options

NOTE: This is a list of supported options; note that some options may be discontinued.
Optional Upgrades 128-MB BBWC (Battery-Backed Write Cache) Enabler
351580-B21

Hard Drives 10,000 RPM Universal Hard Drive
HP 300GB U320 10K Universal HDD
350964-B22
HP 146GB U320 10K Universal HDD
286716-B22
HP 72GB U320 10K Universal HDD
286714-B22
15,000 RPM Universal Hard Drive
HP 300GB U320 15K Universal HDD 411089-B22
HP 146GB U320 15K Universal HDD
347708-B22
HP 72GB U320 15K Universal HDD
286778-B22
HP 36GB U320 15K Universal HDD
286776-B22

Universal Hot Plug Tape Drives HP StorageWorks DAT 40 SCSI Hot-plug Tape Drive (Carbon)
Q1546A
HP StorageWorks DAT 72 SCSI Hot-plug Tape Drive (Carbon)
Q1529A

Related Smart Array Products HP Smart Array 6i Controller
NOTE: The Smart Array 6i Controller ships integrated on several HP ProLiant servers. Please see the Smart Array 6i Controller QuickSpecs for details at: http://h18000.www1.hp.com/products/quickspecs/12030_na/12030_na.html
N/A
HP Smart Array 6402/128 Controller 273915-B21
HP Smart Array 6404/256 Controller 273914-B21
contents
 Overview      Standard Features      Compatibility      Service and Support, HP Care Pack, and Warranty Information      Related Options      Technical Specifications line.gif (50 bytes)

Technical Specifications

Dimensions 12.3 x 4.2 x 0.6 in (31.24 x 10.7 x 1.5 cm)
Protocol Ultra320 SCSI
SCSI Electrical Interface Low Voltage Differential (LVD)
Drives Supported Up to 20 (6 internal and 14 external) Ultra320, Ultra3 and Ultra2 SCSI hard drives
SCSI Port Connectors SA-642 One external one internal SCSI port
Data Transfer Method 64-Bit PCI bus-master
PCI Bus Speed 64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
PCI 3.3 volt CPI slot compatibility only
Simultaneous Drive Transfer Channels Two
Channel Transfer Rate 640 MB/s total; 320 MB/s per channel
Software upgradeable Firmware Yes
Cache Memory 64 MB of DDR memory used for RAID and read cache
Logical Drives Supported 32
Maximum Capacity 6.0TB (20 x 300GB U320 SCSI Hard Drive)
Memory Addressing 64-bit, supporting servers memory greater than 4 GB
RAID Support RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping and Mirroring)
RAID 1 (Mirroring)
RAID 0 (Stripping)
Upgradeable Firmware 2-MB Flashable ROM
Disk Drive and Enclosure Protocol Support Ultra2, Ultra3, and Ultra320

64-MB BBWC Enabler
Dimensions (HxWxD) 3.5 x 1.8 x 0.54 in (8.89 x 4.6 x 1.37 cm)
Cache Memory 64 MB of DDR memory for RAID, read cache, and BBWC: ECC protection, battery-backed, and removable
Cache Batteries Up to 3 days of battery life, removable for easy replacement

128-MB BBWC Enabler
Dimensions (HxWxD) 3.5 x 1.8 x .54 in (8.89 x 4.6 x 1.37 cm)
Cache Memory 128 MB of DDR memory for RAID, read cache, and BBWC: ECC protection, battery-backed, and removable
Cache Batteries Up to 3 days of battery life, removable for easy replacement

Environment-friendly Products and Approach

End-of-life Management and Recycling Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


© Copyright 2009 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.


   DA-12069 16 - Version 16 - September 15, 2009
