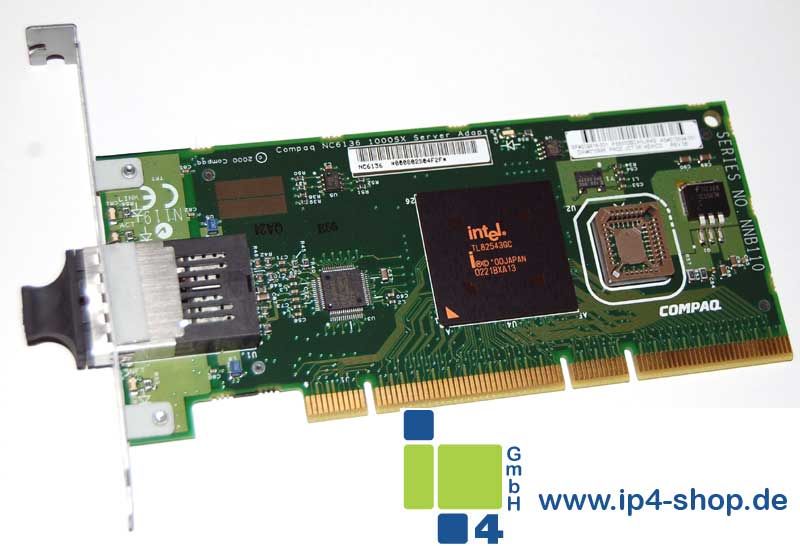

HP Compaq NC6136 Gigabit Ethernet NIC 1000 Base-SX 64-bit/66MHz PCI
Card REF
Modell: 203539-B21, 212431-B21, 203539R-B21
Zustand: refurbished,
12 Monate ip4 Gewährleistung
G1, DL380 G2, DL580 G1, DL590, DL760 G1, ML310 G1,
ML330 G1, ML330 G2, ML350 G1, ML350 G2, ML370 G1,
ML370 G2, ML530 G1, ML570 G1, ML750
Compaq NC6136 Gigabit Server Adapter PCI, 64/66, 1000-SX | |
Models | |
Compaq NC6136 Gigabit Server Adapter PCI, 64/66 1000-SX |
203539-B21 |
The NC6136 is a second-generation Gigabit server adapter for fiber-optic environments. It offers superior performance while also supporting advanced server features such as PCI Hot Plug, Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing. | |
Fast Ethernet Server Adapters: | |
NC3123: PCI, 10/100 WOL |
174830-B21 |
NC3134: Fast Ethernet NIC 64 PCI Dual Base 10/100 |
138603-B21 |
Gigabit Server Adapters: | |
NC7131: Gigabit Server Adapter, PCI, 64/66, 10/100/1000-T |
158575-B21 |
Optional Upgrade Modules for use with the NC3134: | |
NC3133: 100 FX Upgrade Module |
338456-B25 |
NC3135: Dual 10/100 Upgrade Module |
138604-B21 |
NC6132: 1000 SX Upgrade Module |
338456-B23 |
NC6133: 1000 LX Upgrade Module |
338456-B24 |
|
Introduction |
The NC6136 strengthens Compaq's Gigabit server adapter offerings by providing a single port 1000 Mbps Ethernet connection for 32- and 64-bit PCI slots in fiber-optic environments, where security, distance requirements, and EMI protection are of paramount importance. |
|
Performance | |
32-/64-bit Bus-mastering | The NC6136 offers the highest data transfer method available between a network and a server for high performance and low CPU utilization. The NC6136 operates in 32- or 64-bit PCI slots and uses 33 or 66MHz bus-mastering technology to maximize throughput and minimize CPU utilization. |
|
Port Bonding | Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (FEC/GEC/802.3ad static-mode configuration only) are two port-bonding methods that are supported by the NC6136. TLB provides both failover and balancing of transmit traffic across all adapters for increased performance. For even higher performance, Switch-Assisted Load Balancing (SLB) provides port failover and balancing of both transmit and receive traffic across all adapters when connected to a switch that supports this feature. |
|
Jumbo Frames | Jumbo Frames (also known as Extended Frames) offer a 9K byte Maximum Transmission Unit (MTU), which is six times the size of traditional Ethernet frames. Like all Compaq Gigabit server adapters, the NC6136, supports jumbo frames as a way to achieve higher throughput and better CPU utilization when deploy in a network infrastructure that supports them. Jumbo frames are particularly useful for database transfers and tape backups. |
|
Performance Enhancements | The NC6136 supports Interrupt Coalescence in all the major OS environments, reducing CPU utilization. The NC6136 also supports Receive and Transmit TCP Checksum Offloading, as well as Transmit IP Checksum Offloading under Windows 2000. |
|
Ease of Use | |
Plug and Play |
Fully compliant with the 2.2 PCI specifications, this adapter automatically configures its I/O address and interrupt (IRQ) settings for easy installation. |
|
Security/Reliability | |
Network Fault Tolerance (NFT) | The Network Fault Tolerance feature of the NC6136 ensures that the server can always keep an active link. After installing a second, compatible adapter, if the primary network connection fails, the second, backup adapter will automatically take over, retaining the network connection. The NC6136 can be configured to fail over to any NC31xx, NC61xx, or NC71xx adapter by using the latest drivers. |
|
PCI Hot Plug | The NC6136 includes PCI Hot Plug support, which enables it to be replaced or added to a PCI Hot Plug compatible server without powering down the system. This feature provides increased system availability and non-stop serviceability in business-critical computing environments. |
|
Network Management | |
Standards-based |
The NC6132 supports the following Compaq Management tools and industry network management standards:
|
|
Server Integration |
Compaq's SmartStart configuration utility
includes setup support for the NC6136 so the adapter can be configured as
part of the SmartStart configuration process. Compaq Insight Manager can
recognize the NC6136 individually or in port bonded teams, and can collect
and report SNMP statistics on the adapter events. Integrated Management Log (IML) support is provided by the NC6136 for critical event logging on Compaq servers. |
|
Configuration Utilities |
Each NC6136 ships with a suite of OS-tailored configuration utilities that allow the user to run initial diagnostics and configure adapter teams for Network Fault Tolerance, Transmit Load Balancing, or Switch-Assisted Load Balancing (FEC/GEC/802.3ad static-mode configuration only) in the Windows 2000 and Windows NT operating systems. |
|
Diagnostic LED Indicators |
Bracket LEDs indicate link integrity and network activity. A diagnostic LED on the board indicates whether the NC6136 is running at 33 or 66 MHz bus speed. |
Technical Specifications
Compliance | IEEE 802.3x, 802.3z, 802.3ad
(static configuration mode only), 802.1p, and 802.1Q PCI 2.2 ACPI v1.20a compliant | ||
General Specifications | Communications
Processor On-board memory Data path Interrupt levels Bus architecture Connector Wavelength Distance and wiring Dimensions (LxW) |
Intel 82543GC 1000 Mbps, Full-duplex 64 KB 64-bit/66 MHz, compatible with 64/33 and 32/33 INTA PCI bus-mastering SC SX = 850nm Up to 1,804 ft/550 m with multimode fiber (50µm/125µm) Up to 705 ft/220 m with multimode fiber (62.5µm/125µm) 7 x 2.75 in/18 x 7.2 cm | |
64-bit addresses for systems with
more than 4 GB of physical memory 64-bit PCI host interface compliant with PCI 2.2 Command usage optimization for advanced PCI commands (MWI and memory reads) Software controlled global reset bit (resets everything except PCI configuration registers) | |||
Power and Environmental Specifications | Operating | Temperature | 32° to 131°F/0° to 55°C |
Humidity | 10% to 90% | ||
Non-operating | Temperature | -85° to 185°F/-65° to 85°C | |
Humidity | 5% to 95% | ||
Power requirement | 1620 mA @ 5V maximum | ||
Emissions Standards | FCC Class B, VCCI Class B, BSMI
Class A, CISPR 22 Class B, EN60950, EN 55022 Class B, EN55024, UL, Canada UL, CES-003 Class B | ||
Safety Compliant | CE Mark | ||
Operating System Support | Windows 2000 Windows NT 4.0 Novell NetWare 4.x, 5.x Server SCO UnixWare 7.x SCO OpenServer 5.x Linux Red Hat 7.x MS-DOS Client for unattended installation |
|
Software Feature Support by Operating System | FEATURE | Windows 2000 | Windows NT 4.0 | Linux 32-bit | UnixWare 7.x | Open Server 5.x | NetWare 3.12, 3.2 Server | NetWare 4.11 Server | NetWare 5.0 Server |
NFT | * | * | * | * | * | * | |||
Link Aggregation | * | * | * | * | |||||
PCI Hot-Plug |
* | * | * | * | |||||
Configuration and Diagnostics | * | * | |||||||
DMI 2.0 | * | * | * | * | |||||
SNMP | * | * | * | * | * | * | |||
SmartStart | * | * | * | * | * | * | * | * | |
Insight Manager |
* | * | * | * | * | * | * | * | |
IML | * | * | * | * | * | * |
|
Kit Contents |
NC6136 Gigabit Server Adapter CD containing Drivers, User Guide, and Installation and Diagnostic utilities Quick Install Card Product Quality Statement Product Warranty Statement |
|
Warranty | Maximum: | The remaining warranty of the Compaq server product in which it is installed (to a maximum of a three-year limited warranty). |
Minimum: | One-year, on-site limited warranty. | |
|
NOTE: Certain restrictions and exclusions apply. In North America, call 1-800-OK-COMPAQ; outside of North America, please contact your customer service center. | |
|
© Copyright 2003 Hewlett-Packard Development Company, L.P. |
